Description

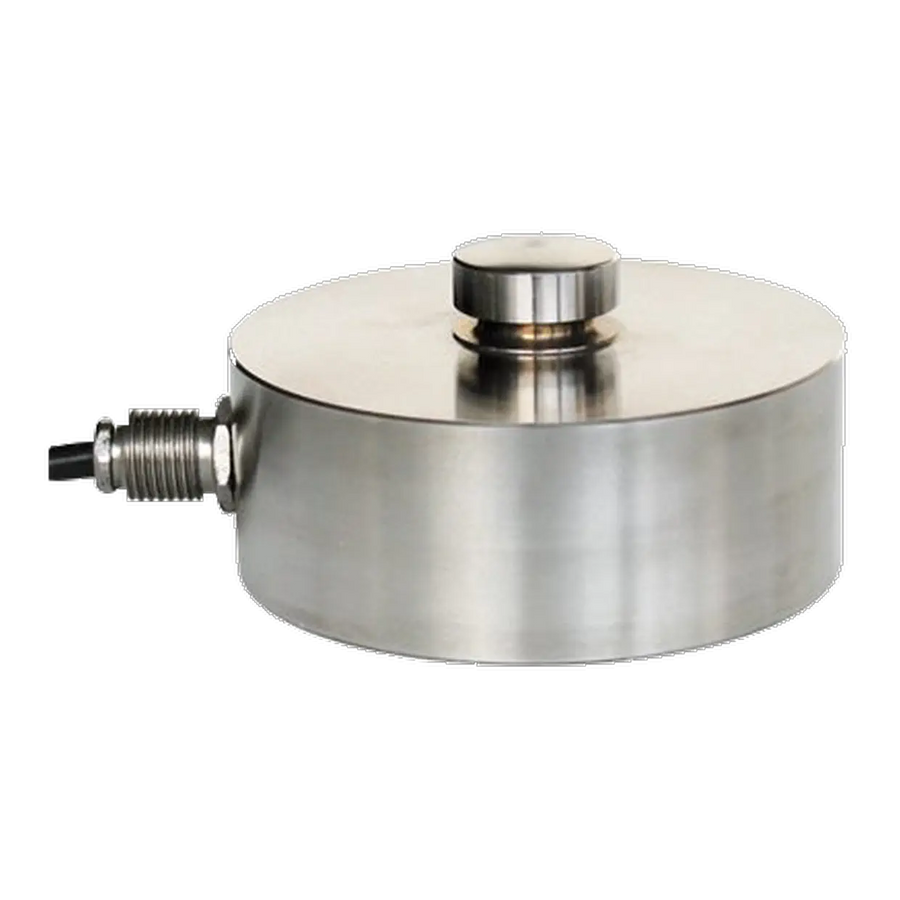

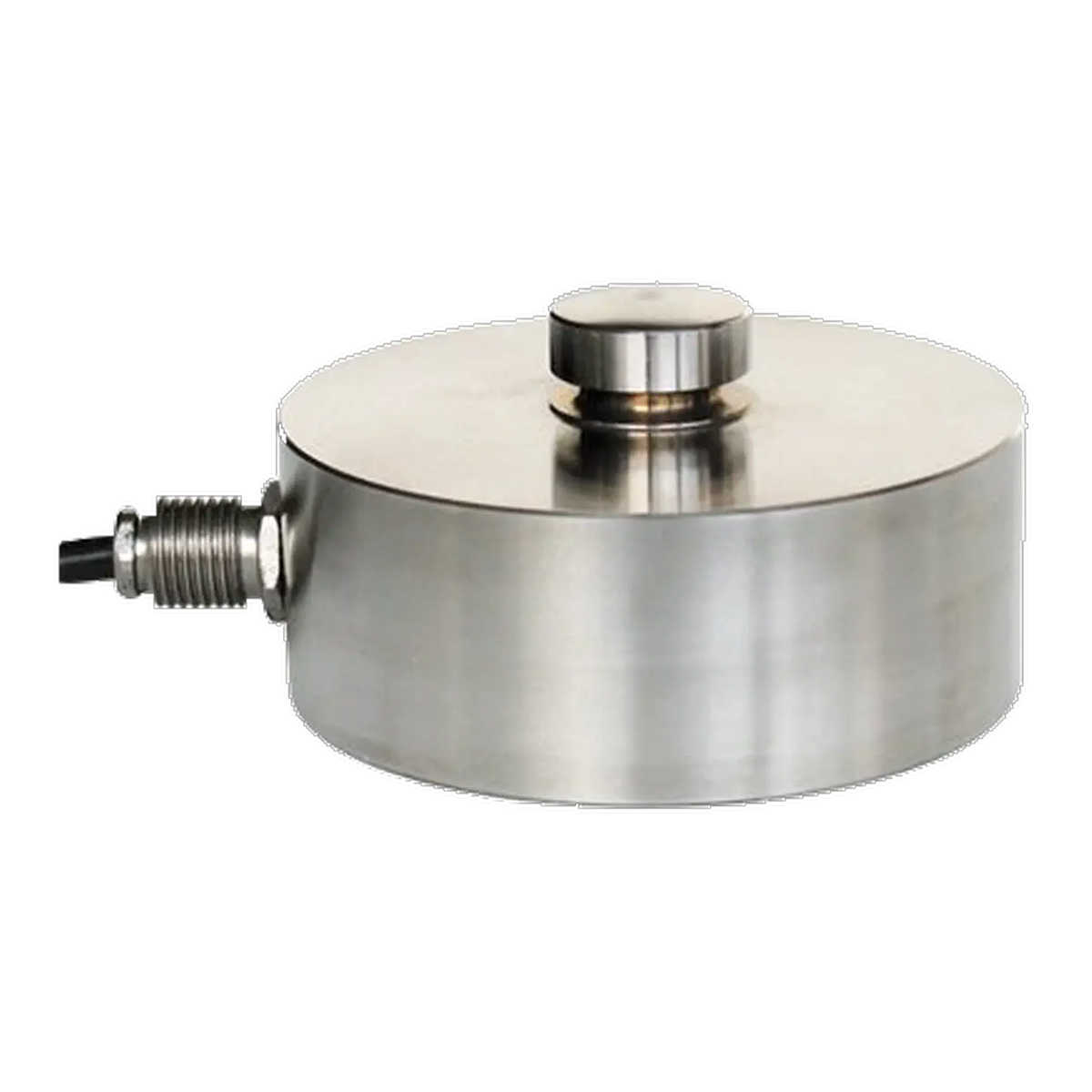

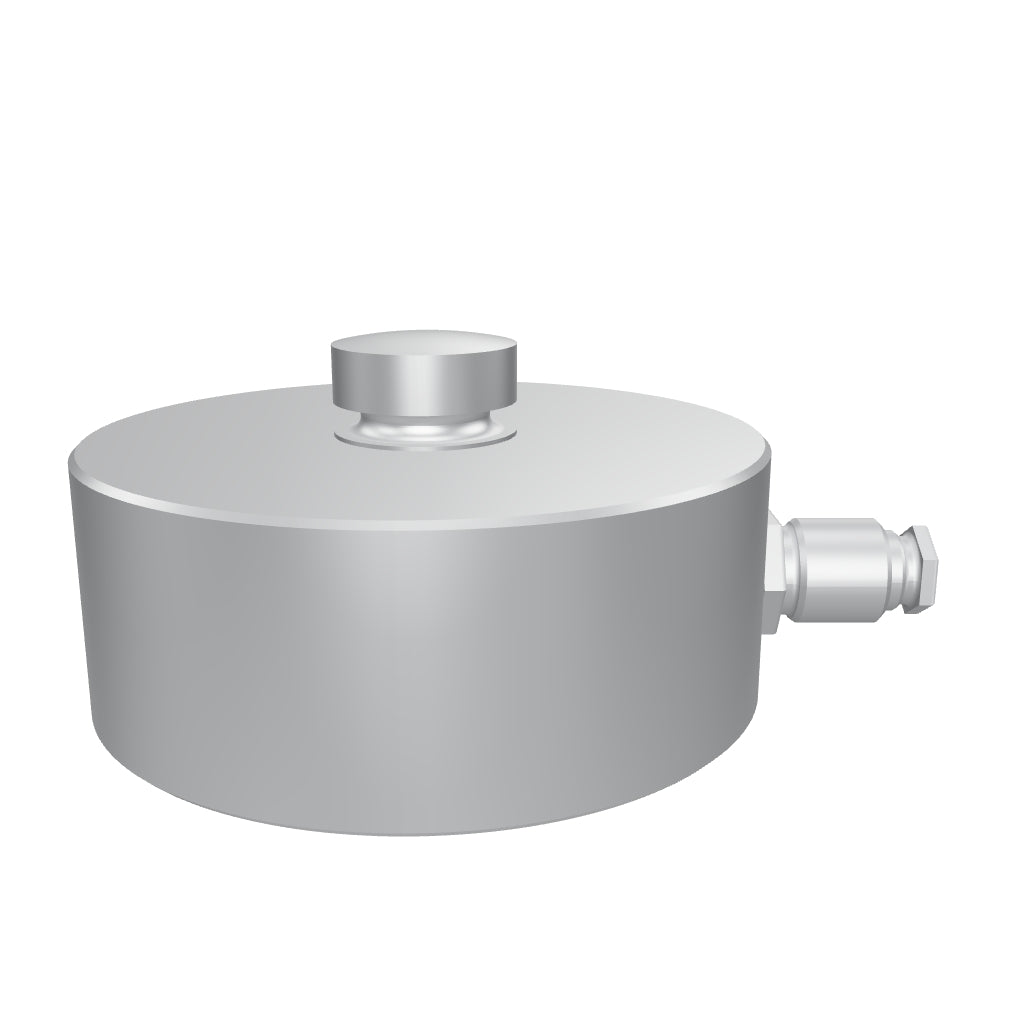

The LKLA is a robust compression load cell for industrial weighing and force measurement applications. It is suitable for tank scales, silo scales, test benches, machine monitoring and heavy plant constructions.
The load cell is available in measuring ranges from 2.5 kN to 1,000 kN or 250 kg to 100,000 kg. The total error is max. ±0.03 % FS; accuracy class C3 with ≤ ±0.02 % FS is optionally available.
The housing is made of stainless steel 17-4PH / 1.4542 and is fully laser-welded. The standard version offers protection class IP68; IP69K is available as an option. ISO 17025 calibration and various certifications are optionally available.
Versions to ATEX for zone 2/22 and to ATEX/IECEx for zone 1/21 are available on request.
Advantages at a glance
- Robust compression load cell
- Measuring ranges from 2.5 kN to 1,000 kN
- Total error ≤ ±0.03 % FS
- Optional C3 with ≤ ±0.02 % FS
- Stainless steel housing made of 17-4PH / 1.4542
- Fully laser-welded
- Protection class IP68, optional IP69K
- Suitable for dynamic measurements
- Optional ISO 17025 calibration
