Handheld torque meters and testers for tools

Torque hand-held measuring devices and test equipment for tools or hand-held torque meters test tools where they are used. Torque wrenches, screwdrivers, and cordless screwdrivers can be checked, documented, and sorted out in case of deviations within a few minutes, without having to send the tool away.

Why torque tools need to be tested regularly

A torque wrench is a measuring instrument, not a tool in the conventional sense. Its spring fatigues with every use, a fall can misadjust it, and a single overload can permanently shift it. The problem is: you cannot see it. A wrench that releases ten percent too early clicks just as satisfactorily as one that is correct.

Therefore, quality management systems and relevant standards for hand-operated torque tools require periodic testing. Intervals based on time or number of operations—whichever comes first—are common. Anyone working in series production, maintenance of safety-critical connections, or audited processes requires a test device and a report for this.

A dedicated hand-held measuring device pays off quickly: instead of sending tools away and replacing them for weeks, you can test them in-house, and the tools remain in service.

The crucial point: capturing peak values correctly

This is the function that distinguishes useful devices from useless ones, and it is rarely explained.

A releasing torque wrench yields at the set value. It is exactly this release torque that is the measurement value of interest. If the user continues to pull after this, the torque rises again, sometimes significantly above the release value. A device that simply saves the highest measured value will then display a value that is too high, and you might judge a perfectly fine wrench as faulty.

Therefore, check whether the device detects the first peak value and not just the absolute maximum. For indicating wrenches and screwdrivers, the reverse applies: there, the maximum value or the real-time curve is the correct mode. A useful test device offers both.

What you should look for when choosing

• Measuring range suitable for the tool. A device for 1000 Nm does not measure small screwdriver torques meaningfully. Anyone testing both needs two ranges or a system with interchangeable transducers.
• Accuracy in relation to the test object. The test equipment should be significantly more accurate than the tool being tested; as a rule of thumb, a ratio of four to one or better is often used. Otherwise, you are testing your measurement uncertainty instead of your wrench.
• Both directions of rotation, because left-hand tools must also be tested.

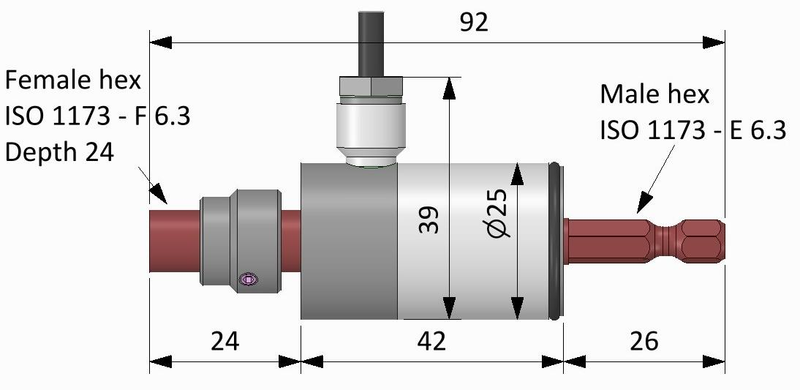

• Drive/Mount. Square drives in common sizes, hex drives for screwdrivers, matching your tool inventory.
• Operating modes. Real-time display, peak value, and first-peak detection of the release point.
• Units. Nm and cNm; for international requirements, additionally lbf·ft or kgf·cm.
• Storage and export. For the test report, it counts how many measurements are stored and whether they can be exported as a file.
• Power supply and robustness, because the device is used in the workshop and not in the laboratory.

Torque hand-held measuring devices and test equipment for tools: The setup determines the result

Even the best test device provides nonsense if the pulling is done incorrectly. Four points make the difference:

Rigid mounting. The device or the transducer belongs on a stiff surface or in a fixture. A yielding frame distorts the curve and thus the release point.

Engage at the correct point. For torque wrenches, the effective length is defined. If you pull further out or in, the applied torque no longer matches the wrench's display.

Pull vertically and in one plane. Force applied at an angle creates side components that the transducer partially includes in the measurement.

Increase slowly and evenly. A jerk creates a dynamic overshoot, which appears as a value that is too high. Especially with short wrenches, the difference is significant.

More than just tool testing

Beyond tool inspection, hand-held measuring devices are suitable for any torque that one wants to capture on-site once: breakaway torques on screw connections and fittings, operating torques on valves and control elements, opening torques on lids and caps, friction torques on bearings and joints, and control measurements in incoming goods and final inspection.

For force measurements in the same mobile application, take a look at our hand-held measuring devices for strain gauge sensors.

Differentiation

If you need to measure permanently in a setup instead of testing on the move, static torque sensors are the suitable design. For measurements on rotating shafts, you need rotating torque measurement shafts. The fundamentals for all three types can be found in the overview of torque sensors.

The test equipment itself must be calibrated

A test device whose calibration has expired makes every report created with it worthless. We calibrate your torque measuring devices according to ISO 17025 in our own laboratory and provide the corresponding certificate.

Tell us the measuring range, tool types, and required documentation, and our engineers will suggest the appropriate device.
