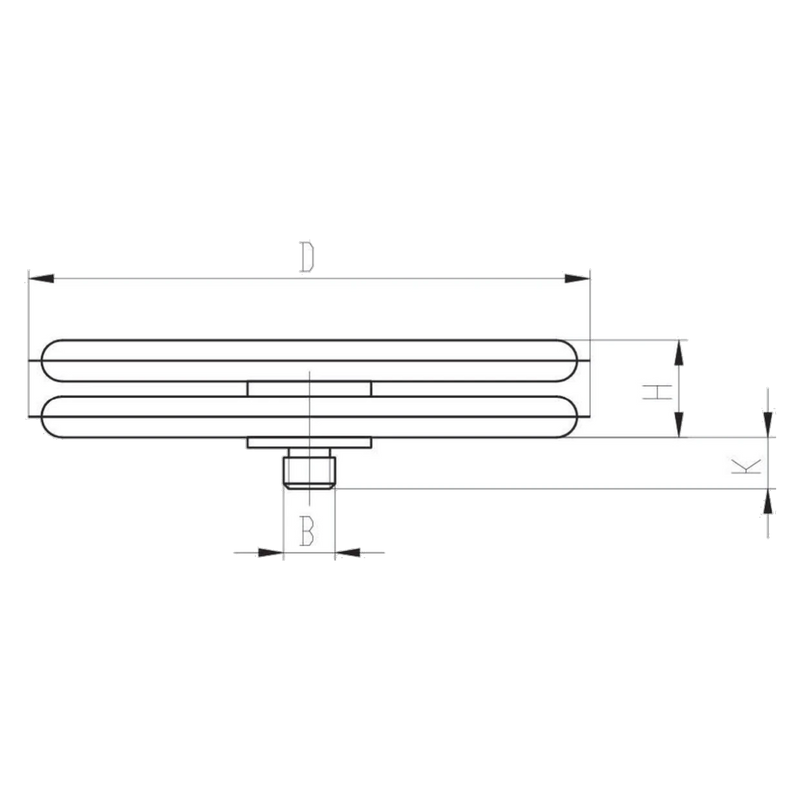

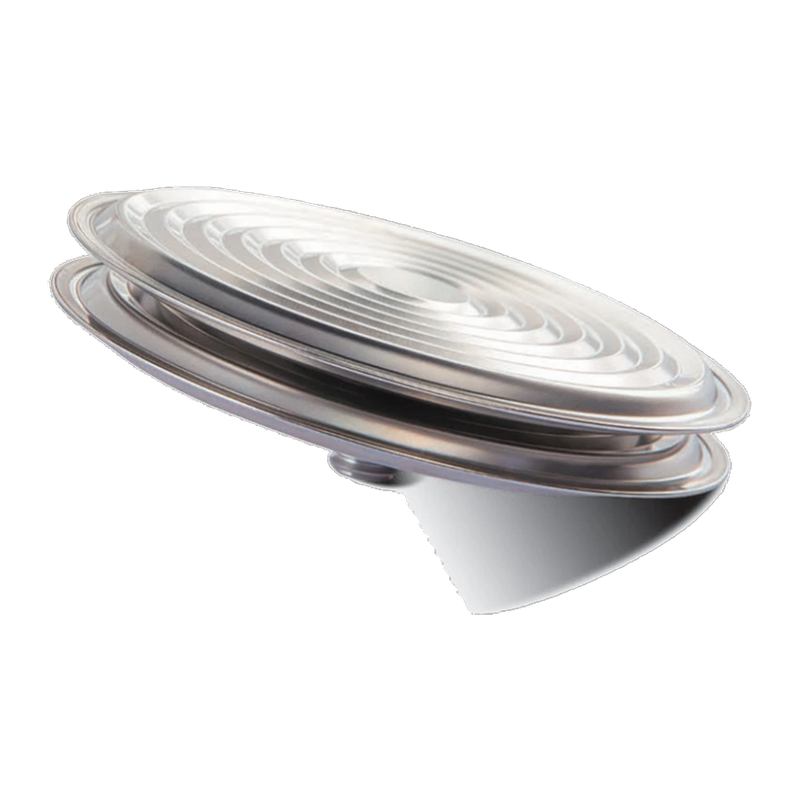

Double-membrane pressure capsules in eight sizes from Ø 38 mm to Ø 114 mm, height 10 … 13 mm. Size 38 is made of CuBe, the others of bronze or 316L. The connection thread is M5 or customised.
Displacement 2.2 … 3 mm, measuring ranges from 0 … 0.2 kPa to 0 … 100 kPa, precision 1 · 1.6 · 2.5 %. Single capsules are listed under stainless steel and copper.
