Bending beam load cells up to 1.5 t rated load

In bending beam load cells the spring element is clamped at one end and loaded at its free end; the strain at the bending zone is measured. At small rated loads this principle delivers more signal per newton or kg than a shear beam load cell, which is why our range of bending beam load cells already starts at 5 kg and goes up to rated loads of 1.5 t.

Bending beam load cells for small and medium rated loads

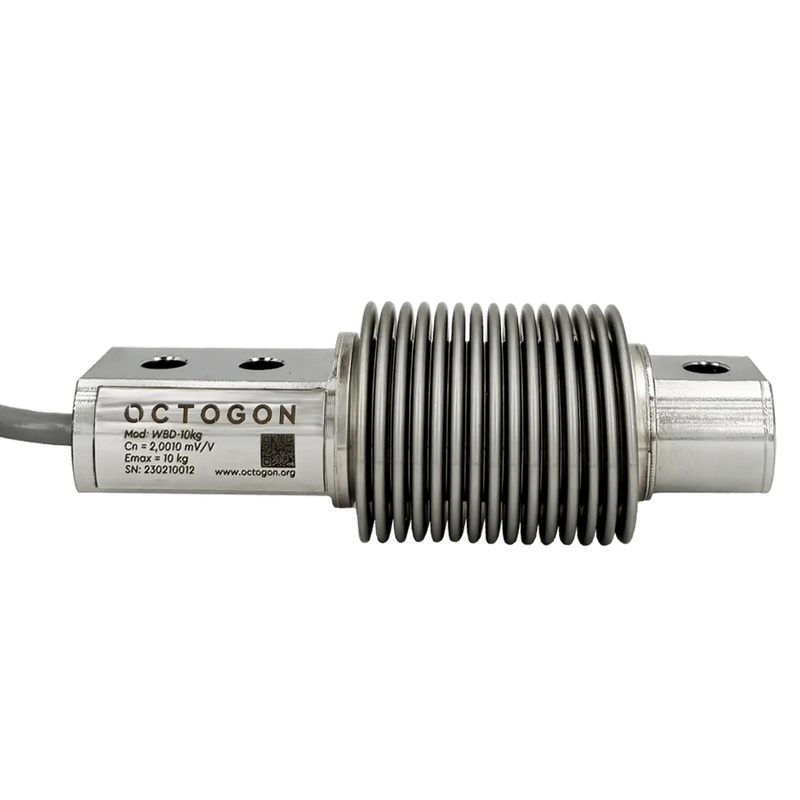

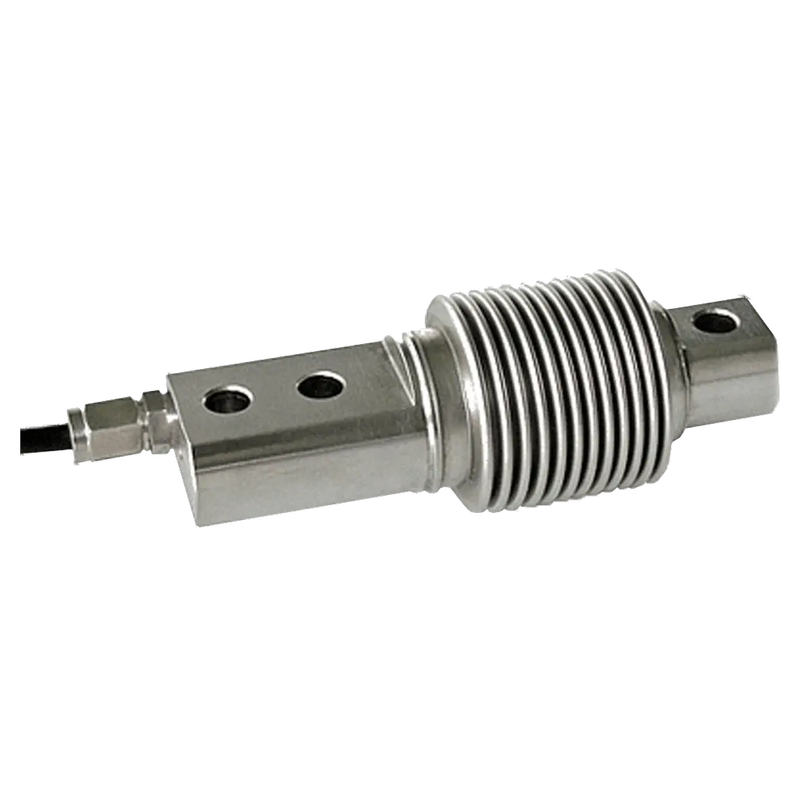

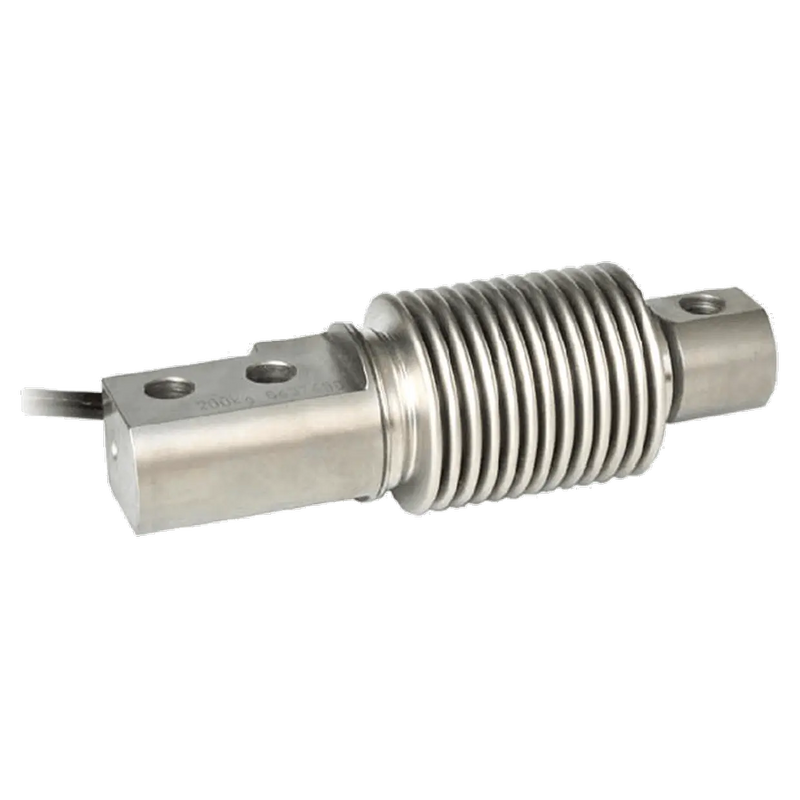

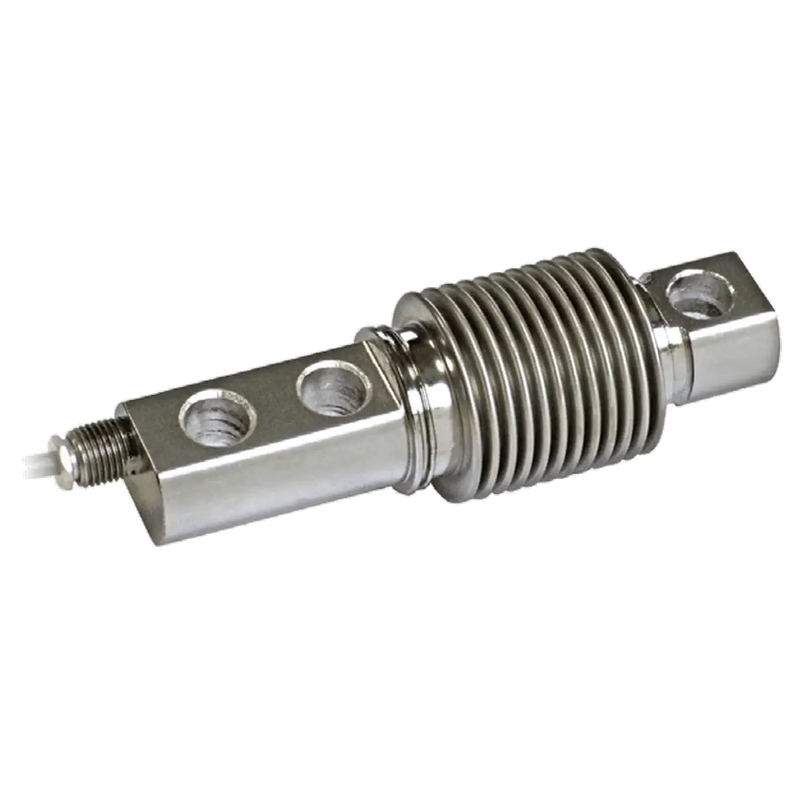

• Rated loads from 5 kg to 1.5 t for dosing units, bagging and filling systems, small hoppers and vessels
• 17-4PH and AISI 420 stainless steel, hermetically welded, protection rating IP68
• Combined error down to ≤ ±0.017 %, accuracy classes C3 and C4 to OIML R60
• One design with a particularly low profile, optionally for –40 to +250 °C and for dynamic measurement
• Versions with ATEX and IECEx approval for hazardous areas

When to choose bending beam, when shear beam load cells?

Below roughly 500 kg the bending beam load cell is usually the more accurate and more economical choice. As the load increases, or when the point of load application is not exactly fixed, shear beam load cells are worth considering because they are less sensitive to side forces and to deviations in the load introduction point.
