LMLBC weighing module for compression load cell 30 to 100 t, EN1090

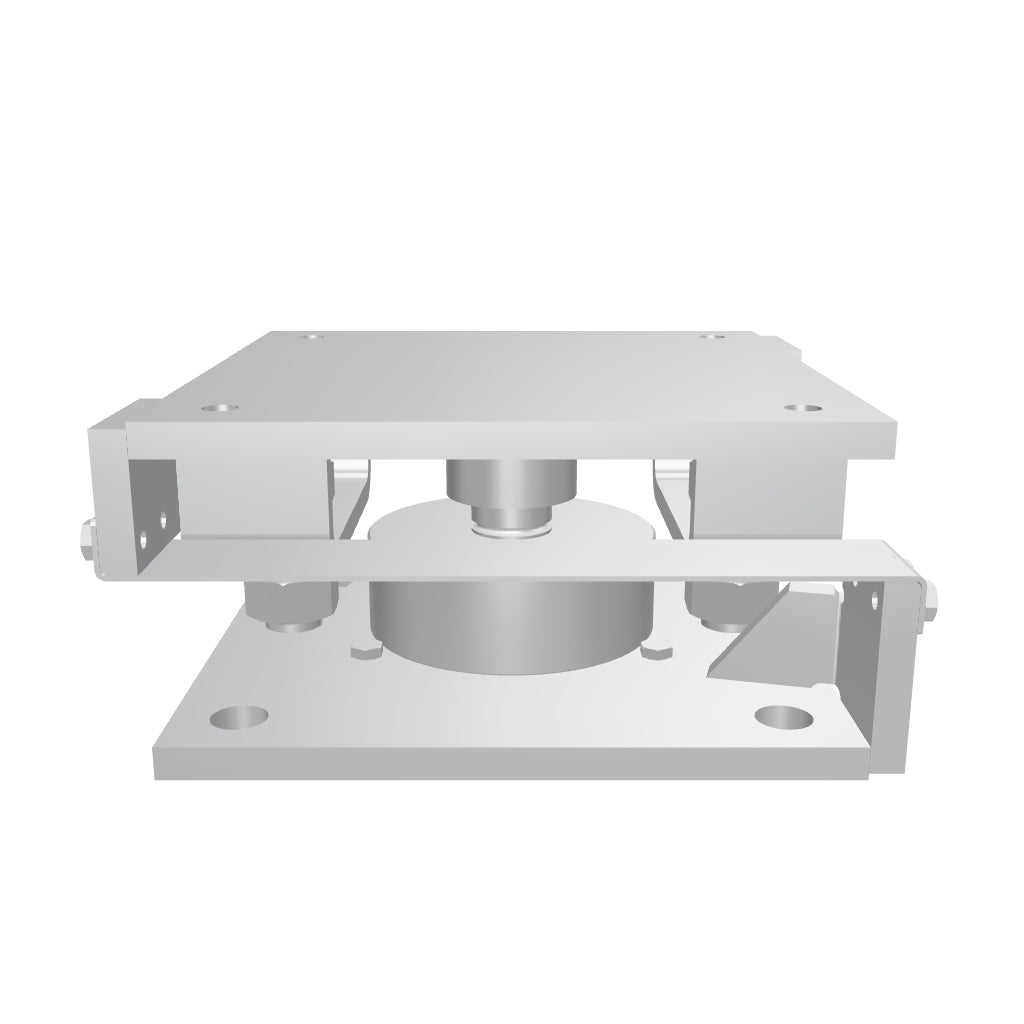

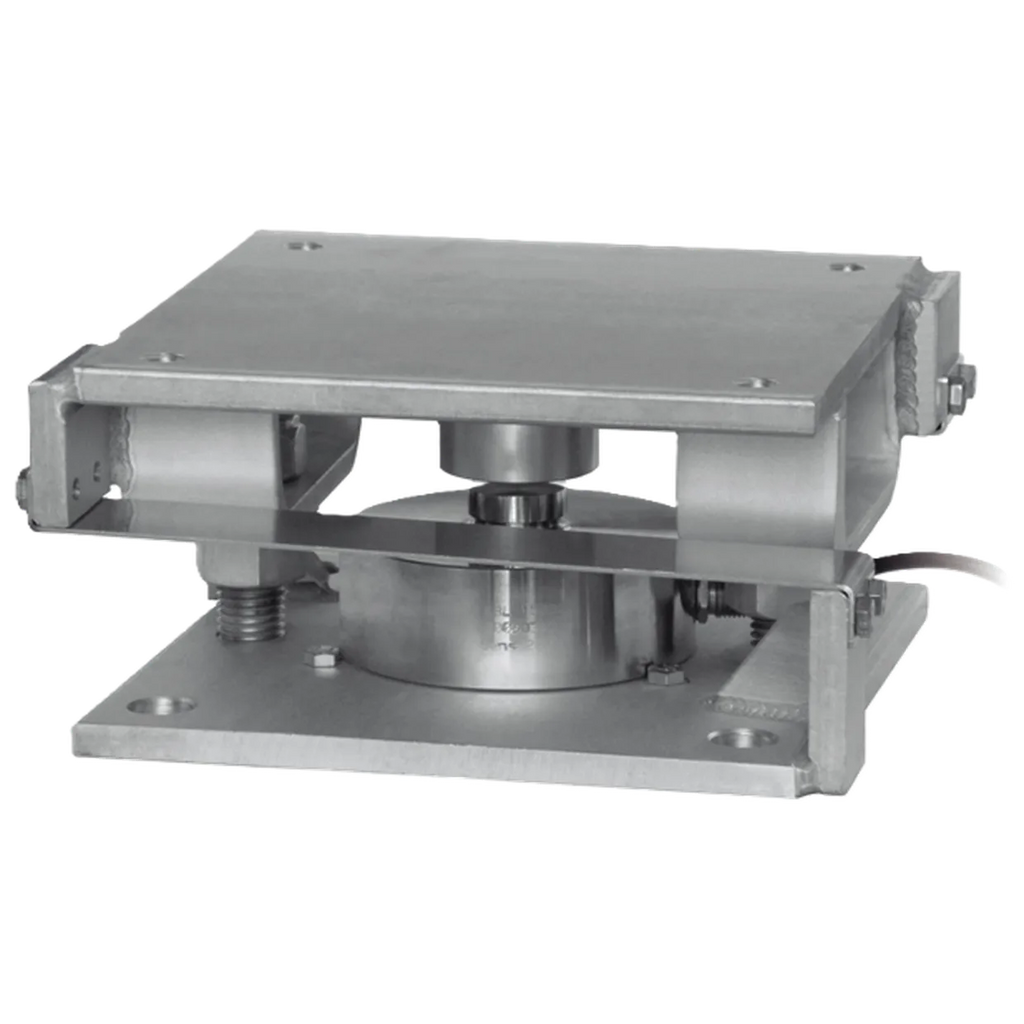

LMLBC weighing module – mounting kit for compression low-profile cells with EN1090 certification, designed for capacities up to 100,000 kg. Top and bottom plates made of AISI 304 stainless steel, with AISI 304 stainless steel laminas against lateral forces. Anti-tilt protection via two threaded rods with self-locking nuts.

Features

• Capacity 30,000–100,000 kg (300–1,000 kN)
• With EN1090 certification
• For load cells LKLA | LKLB | LKLC
• Made of AISI 304 stainless steel, net weight 9–33.5 kg
• Load cell not included

Other versions

• Galvanized S355JR steel (without EN1090): LMLAZ weighing module
• AISI 304 stainless steel without EN1090: LMLBD weighing module
