Description

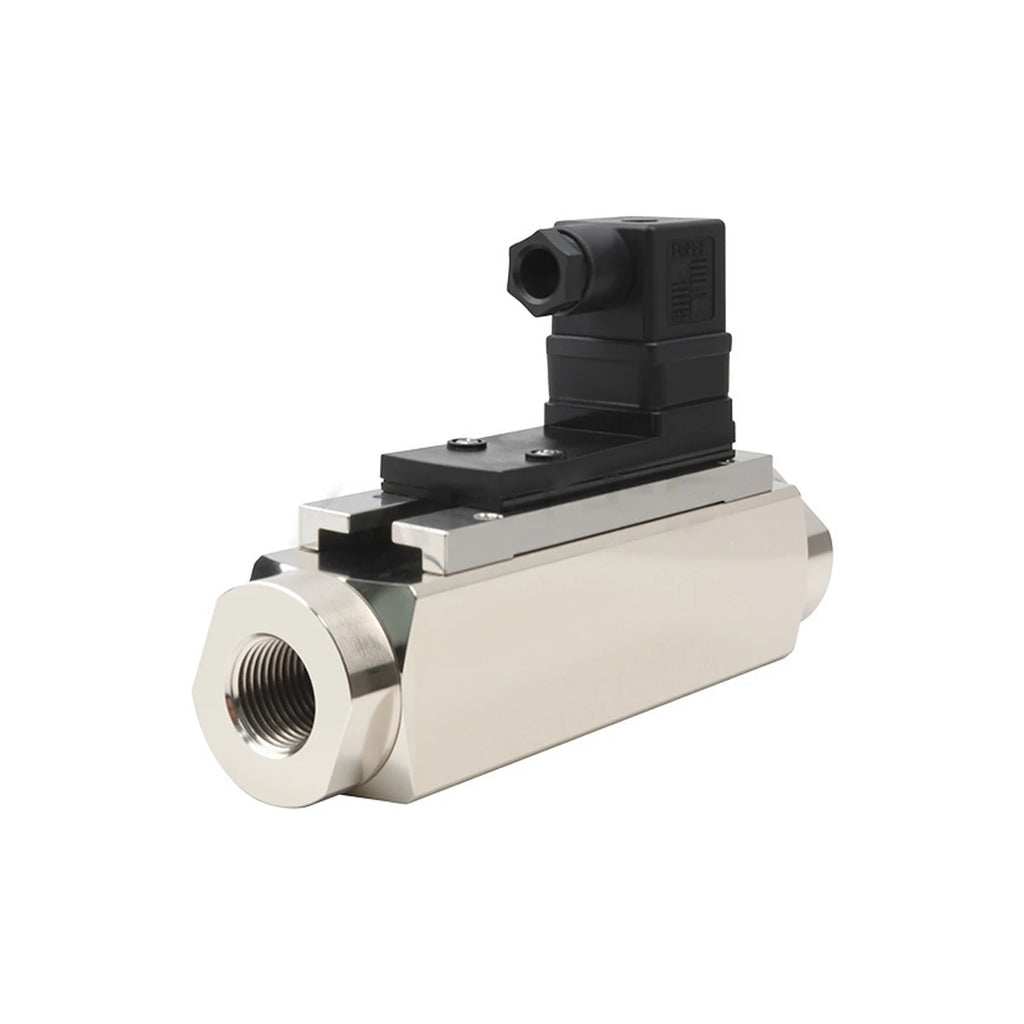

The QSKH is a mechanical in-line piston flow switch with body and piston in nickel-plated brass. It is particularly suited to liquids in industrial equipment, cooling and lubrication.
A magnetic piston on a spring is displaced by the flow, and the magnet closes a reed contact outside the wetted part. Setting range in seven sizes from 2 … 9 to 50 … 200 L/min, switching point set on an engraved scale calibrated in water at 20 °C with horizontal mounting. Accuracy ± 5 of the total range; we will confirm the unit of this figure on request. Hysteresis depends on the switching point, at least 0.6 L/min. Output reed contact, one changeover, switching capacity 24 V DC / 1 A. Details of the supply voltage are available on request. Connection M12 connector or rectangular plug.
Body and piston in nickel-plated brass, spring stainless steel, seal NBR. Process connection female thread G or R from 1/2 to 1½ inch by size. Pressure rating 100 bar, pressure loss ≤ 0.5 bar at 25 L/min, medium temperature ≤ 90 °C, protection IP67 with M12 or IP65 with rectangular plug. A declaration of conformity is available on request. Mounting position, medium and temperature shift the switching value. The amount of this shift and the permissible ambient temperature are available on request.
Benefits at a glance
- Mechanical principle with reed contact outside the medium
- Mechanical and electrical parts completely separated
- Seven sizes up to 200 L/min
- Engraved setting scale, no flow rig needed
- Pressure rating 100 bar
- Medium temperature up to 90 °C
- Changeover contact 24 V DC / 1 A
- Protection IP67 with M12 connector
