Description

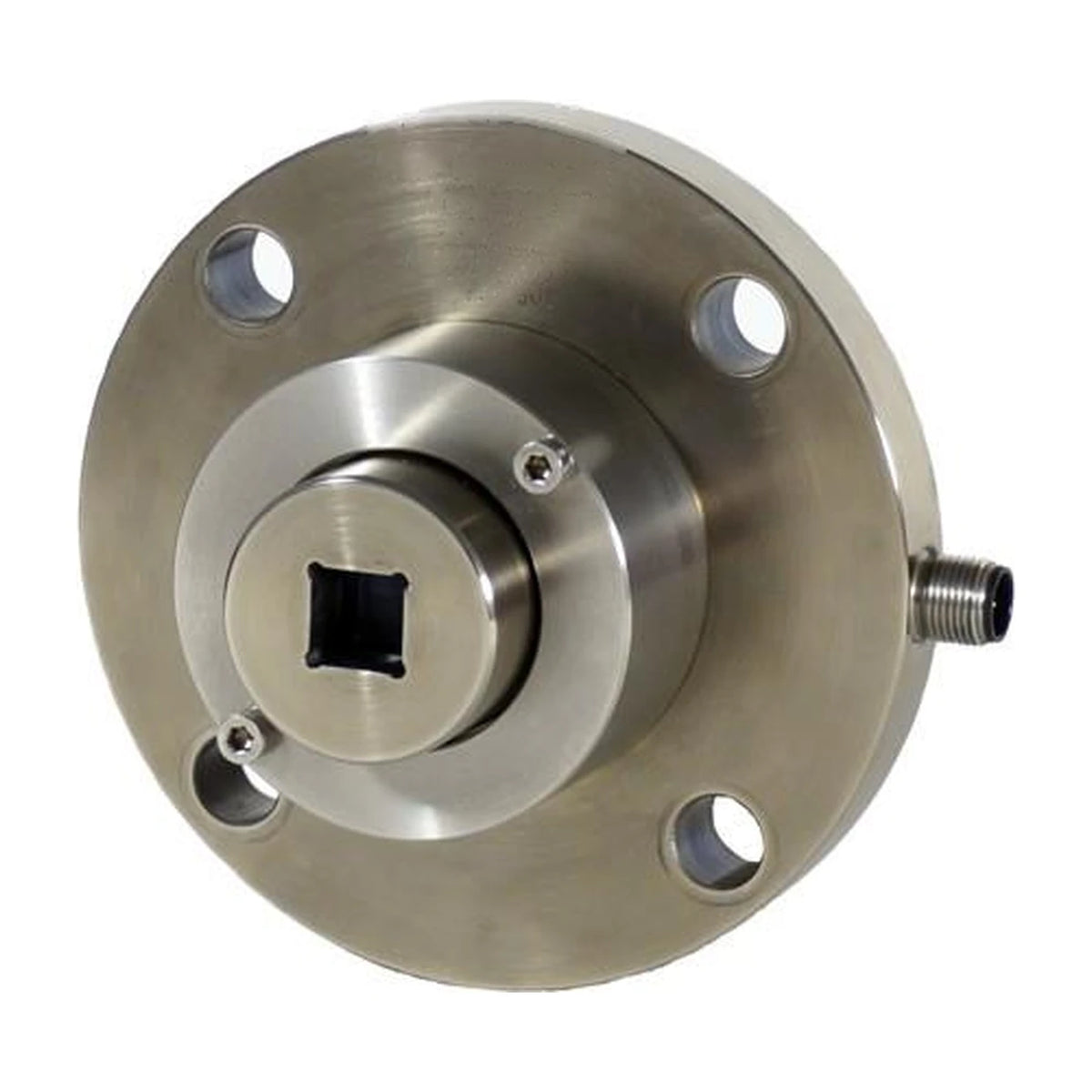

The MSAB is a static torque transducer with flange and female square. It is particularly suitable for test and calibration stations for screwdrivers: together with a torque indicator it forms a calibration system; joint simulator and mounting bracket are available as accessories.

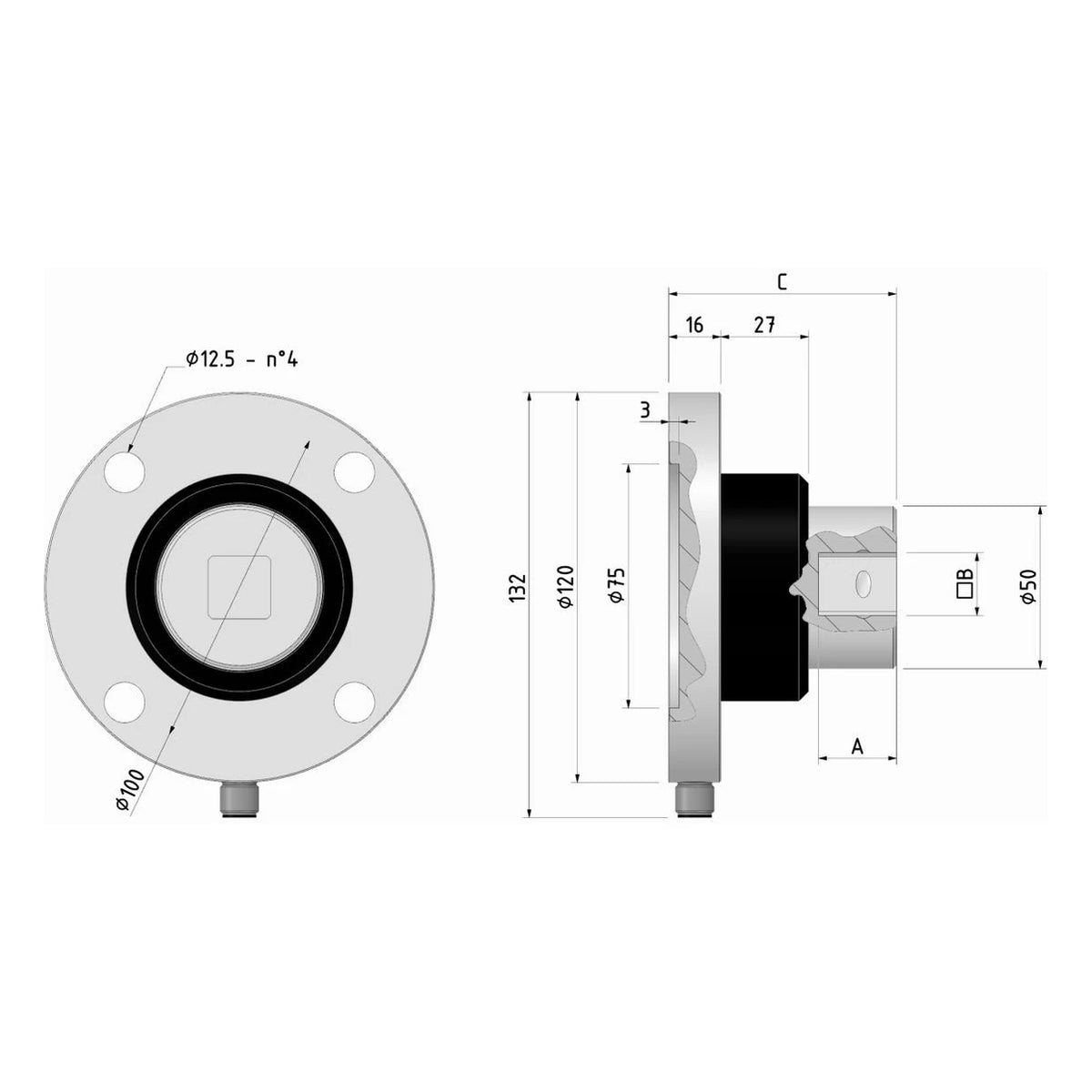

The transducer is available with nominal torques of 100 N·m, 250 N·m, 500 N·m and 1000 N·m and measures clockwise and anticlockwise. Linearity and hysteresis are ≤ ±0.20 %, optionally ≤ ±0.10 %; the rated output is 1 mV/V. The tool engages in the female square according to ISO 1174-1 – ½″ for 100 and 250 N·m, ¾″ for 500 and 1000 N·m; the transducer is fixed by its Ø 132 mm flange with four screws on a Ø 100 mm bolt circle and connected via an M12 connector.
The measuring body is made of stainless steel; the protection class is IP40 and the operating range is −10 to +70 °C. The MSAB complies with CE, RoHS and REACH; a calibration report and an accredited calibration certificate according to ISO 17025 are available on request, each clockwise and anticlockwise.
Benefits at a glance
- Static torque transducer with flange
- Nominal torques 100, 250, 500 and 1000 N·m
- Linearity and hysteresis ≤ ±0.20 %, optionally ≤ ±0.10 %
- Clockwise and anticlockwise, designed for dynamic stress
- ½″ (100/250 N·m) or ¾″ (500/1000 N·m) female square according to ISO 1174-1
- Rated output 1 mV/V, M12 connector
- Accessories: joint simulator and mounting bracket
- Calibration according to ISO 17025 on request
