Description

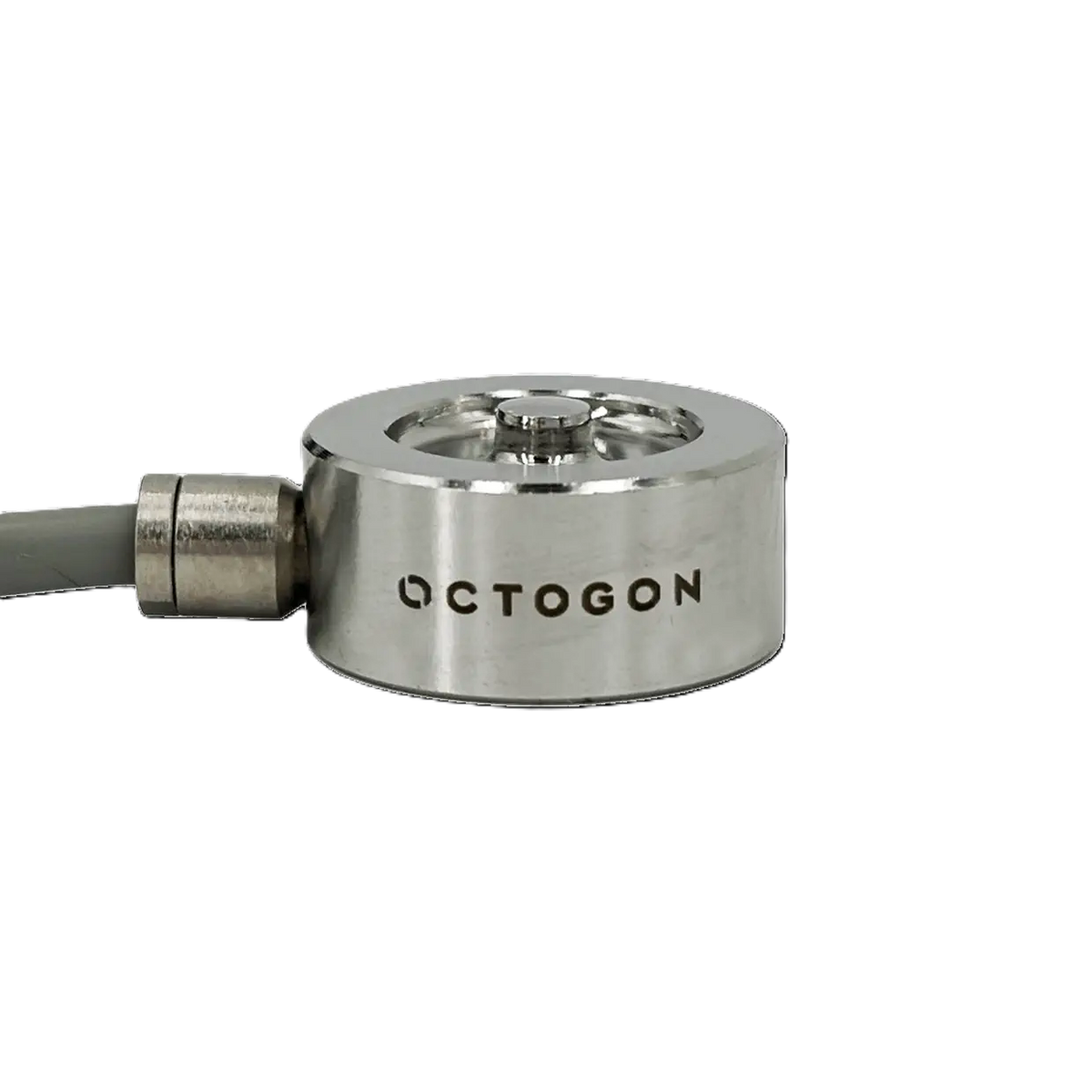

The LKBC is a particularly compact miniature compression load cell made of stainless steel for compressive force measurement in very small spaces. It is suited to OEM applications and confined installation conditions.
The load cell is available in measuring ranges from 5 kN to 20 kN or 500 kg to 2,000 kg. The total error is at most ±0.54 % FS.
The housing is made of 17-4PH / 1.4542 stainless steel and is designed for industrial operating conditions with IP67 protection. ISO 17025 calibration is optionally available.
Benefits at a glance
- Particularly compact miniature compression load cell
- Measuring ranges from 5 kN to 20 kN
- Total error ≤ ±0.54 % FS
- Stainless steel housing of 17-4PH / 1.4542
- IP67 protection
- Designed for confined installation conditions
- Optionally with ISO 17025 calibration
