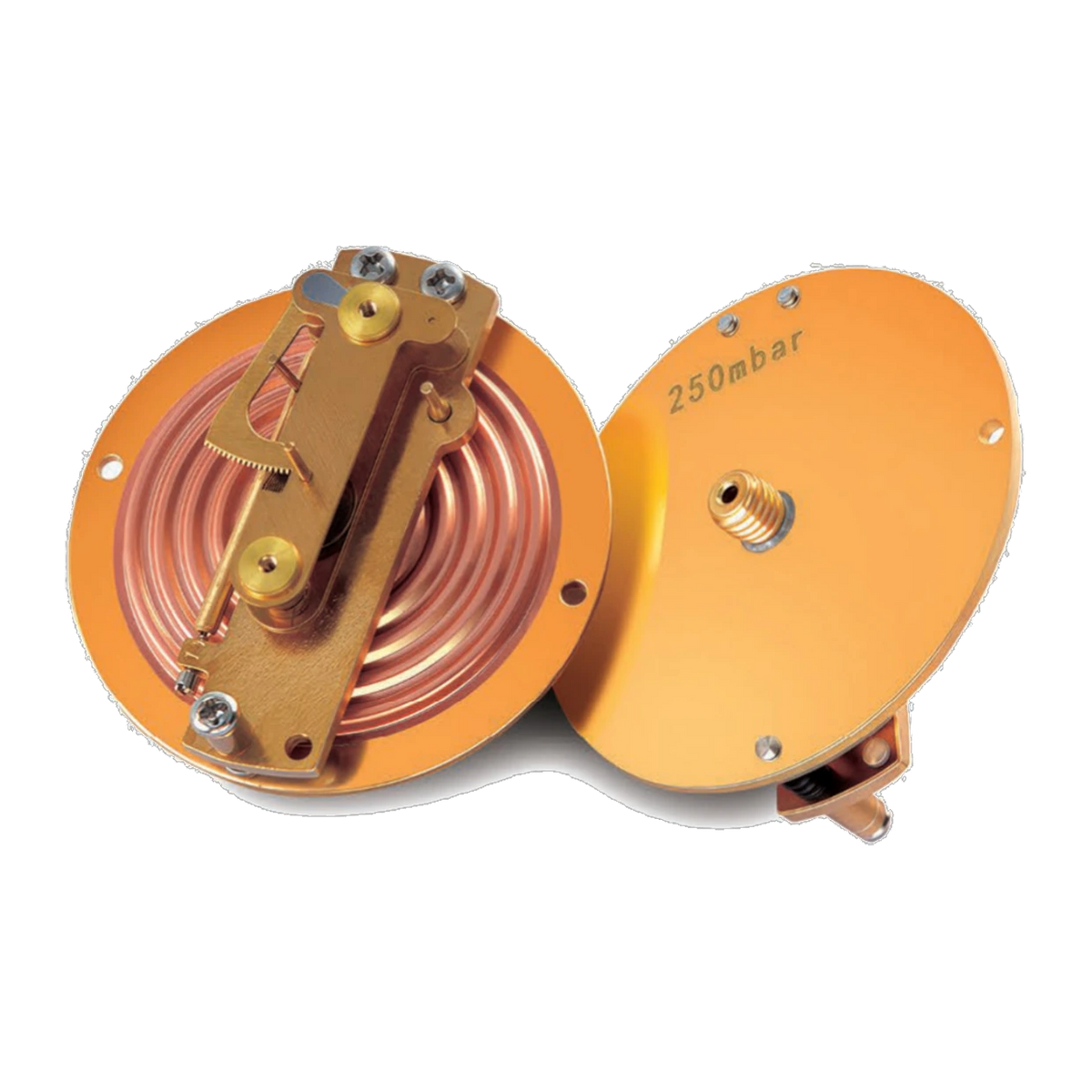

KMOA monolithic membrane box assembly, front and back

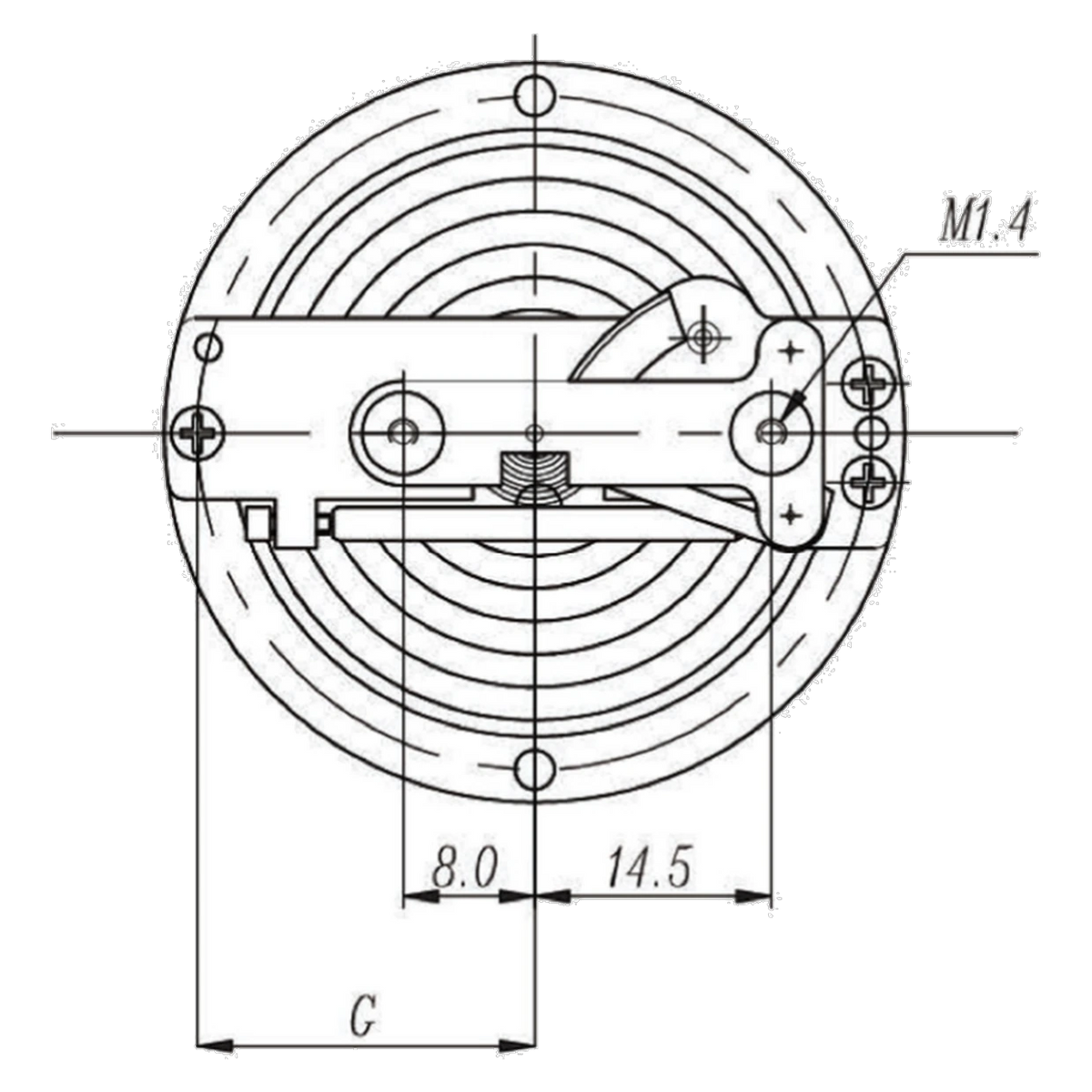

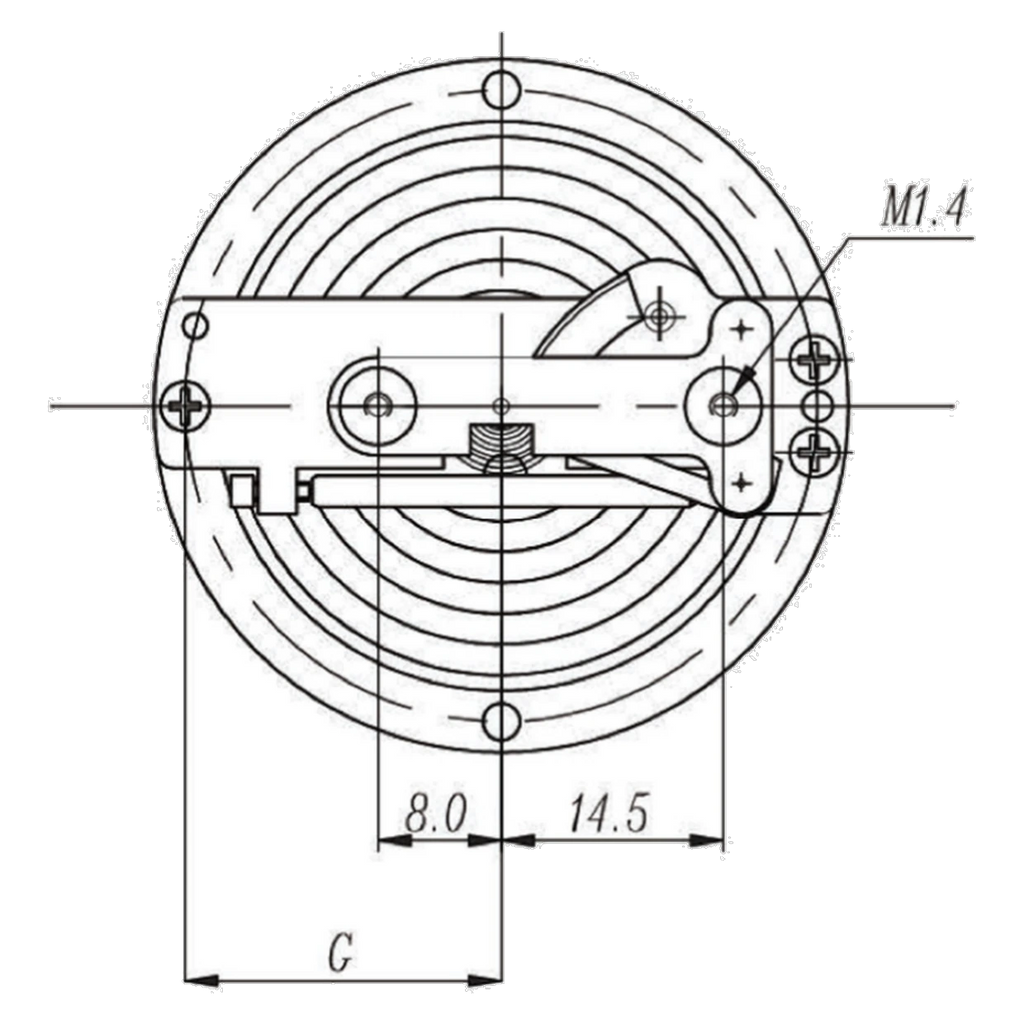

KMOA dimension drawing, top view with dimension G

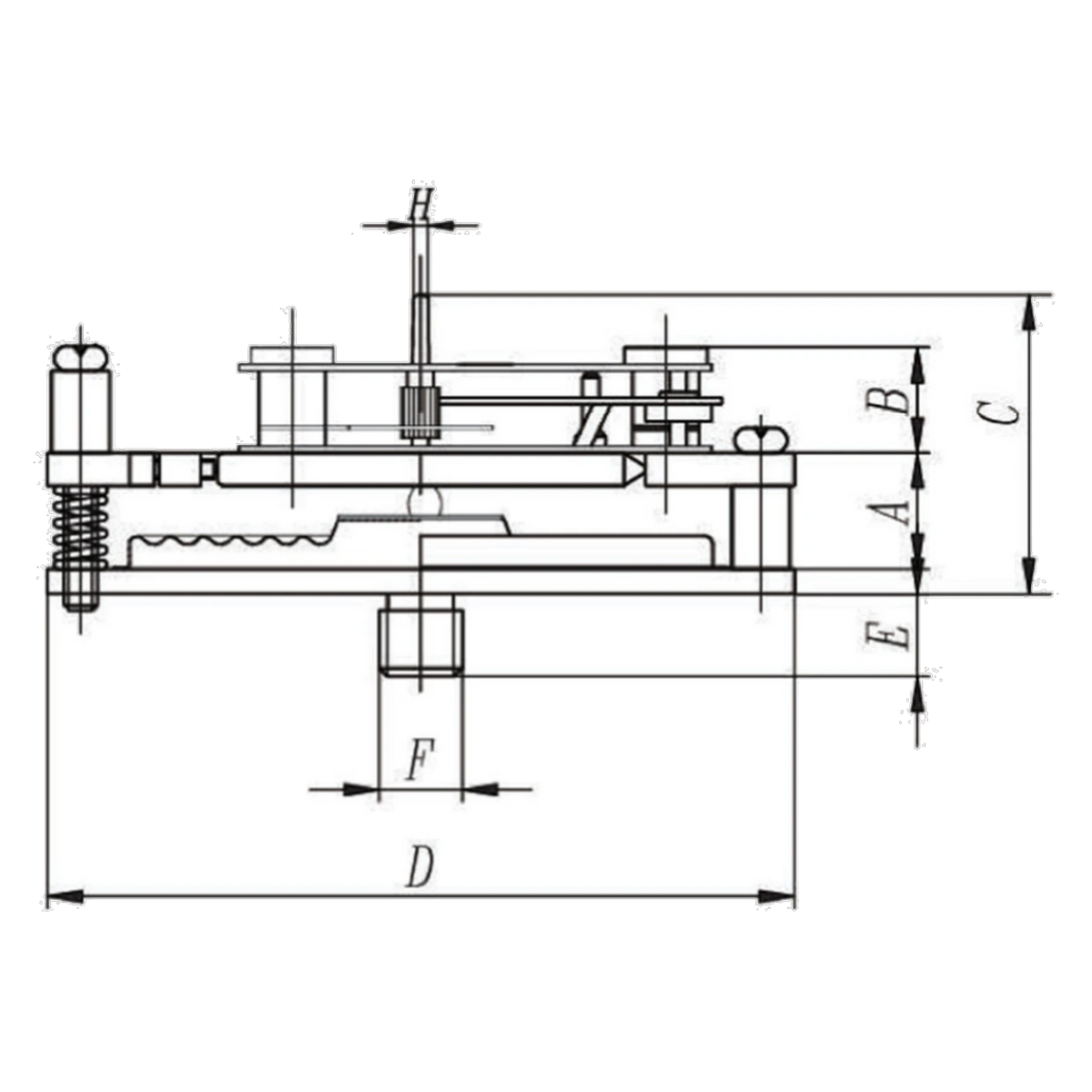

KMOA dimension drawing, side view with dimensions A to F
Roll over image to zoom in Click on image to zoom
KMOA monolithic membrane box assembly, front and backKMOA dimension drawing, top view with dimension GKMOA dimension drawing, side view with dimensions A to F

KMOA Monolithic membrane box assembly

Size: Ø 45 mm
Price:
Price on request
Request a quote

Delivery Time & Shipping

Downloads

Not the right fit? No problem. We build everything! Just ask.

Description

The KMOA is a monolithic membrane box assembly. It is available in three sizes with an outer diameter of 45, 56.5 and 72 mm.

Measuring ranges extend from 0 … 1 kPa to 0 … 160 kPa; the full scale is set per size within the span given.

The connection thread is M5 customisable. Dimensions A to H by size are given in the datasheet.

Benefits at a glance

  • Monolithic membrane box assembly
  • Three sizes, outer diameter 45, 56.5 and 72 mm
  • Measuring ranges 0 … 1 kPa to 0 … 160 kPa
  • Connection thread M5 customisable
