Description

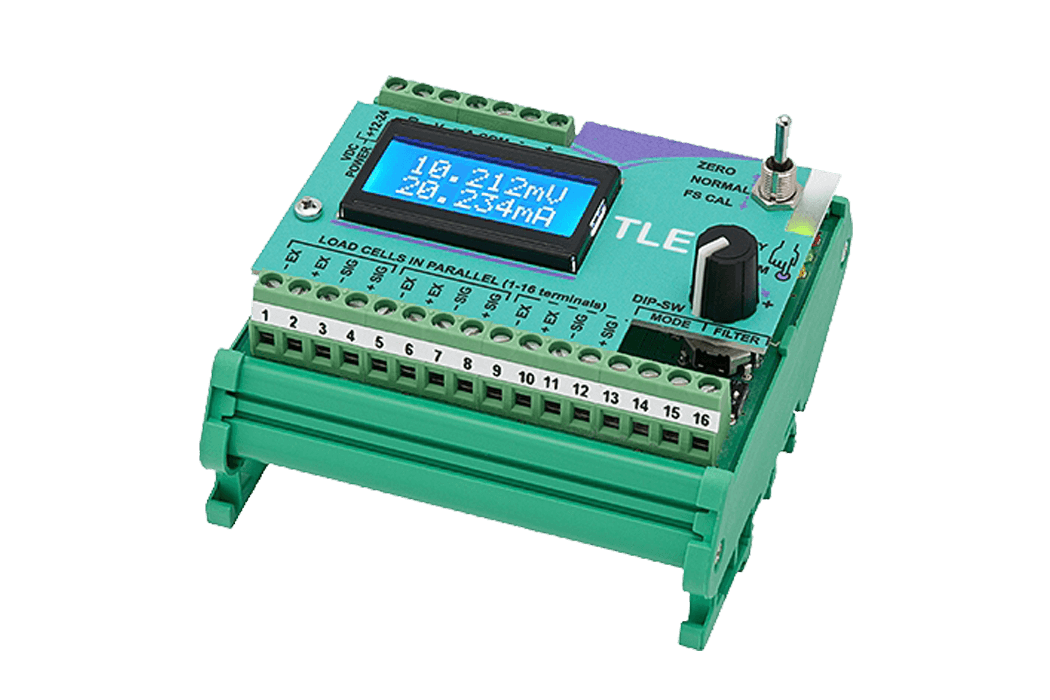

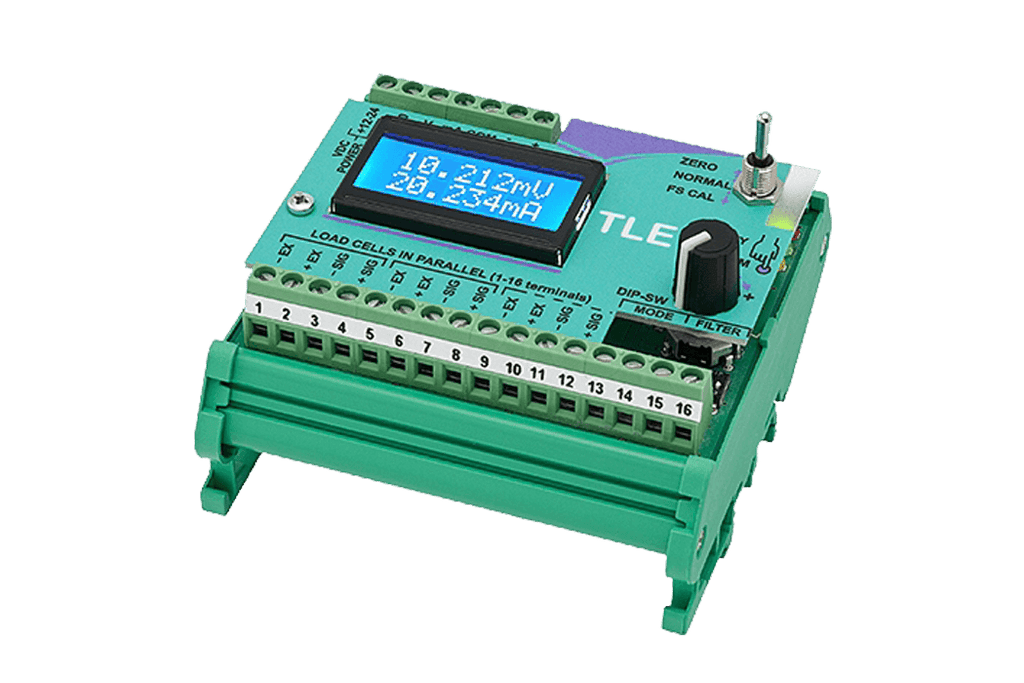

Analog weight transmitter (RS485) for installation on the rear wall of the control panel on Omega/DIN rail or in the box (on request) and with backlit LCD display, 38 × 16 mm, 2 lines of 8 digits (5 mm digit height). Suitable for applications requiring a fast response time of the analog output (update time 0.003 … 4 sec. / 10 … 30 Hz). Dimensions: 90 × 95 × 60 mm. 3-position selector, DIP switch and rotary knob.
Features of the ETLA analog weight transmitter
✓ Serial interface RS485 for communication via ModBus RTU protocols
✓ Easy adjustment of zero point and full scale without multimeter, but by digital rotary control (encoder)
✓ 4 load cell inputs
✓ 16 bit fast analog output in current or voltage: 0 … 20 mA, 4 … 20 mA; 0 … 10 V, 0 … 5 V; ±10 V, ±5 V; response time: 3 ms
✓ Connections to: PLC via analog output, PC/PLC via RS485 (up to 99 instruments with amplifiers, up to 32 without amplifiers), up to 8 load cells in parallel with junction box
✓ Simultaneous display of the load cell response signal expressed in mV and the value of the analog output
CAD model:

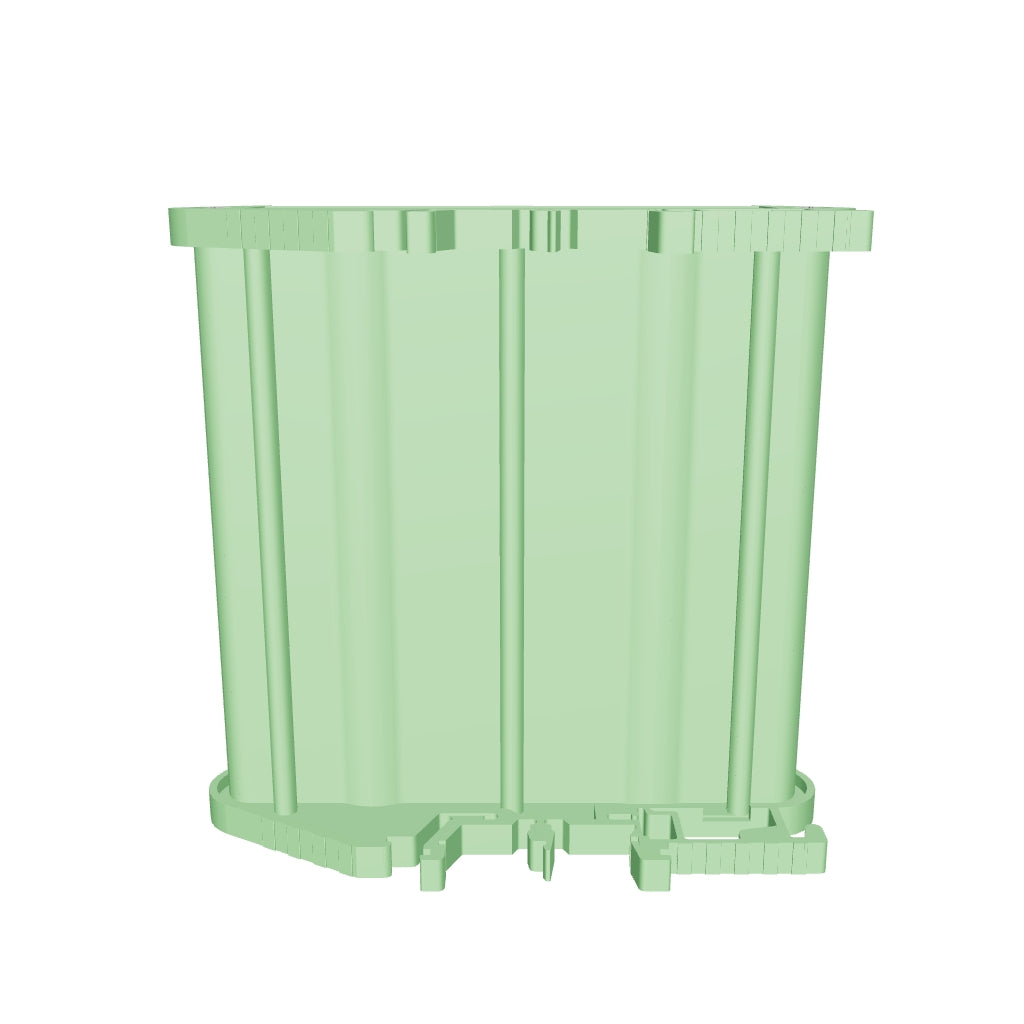

ETLA CAD model
