Description
Programmable safety controller ESMD for SIL3 (IEC 61508) and PL e (EN ISO 13849-1). This is the controller that the SIL3 amplifiers of this range require: it compares the two redundant channels of an ESMA or ESMB and takes the plant to its safe state on deviation.
A logic device, not a measuring device. Freely programmable with up to 800 STL instructions, function-plan oriented, with cross-fault detection and external contact monitoring (EMU).
The controller connects to the plant control system over fieldbus — besides interface modules, PROFISAFE and FSoE are available up to PL e and SIL3 respectively.
Features of the ESMD
✓ Safe digital inputs: 14, of which 10 OSSD
✓ Safe analog inputs: 2 (plus 4 standard inputs)
✓ Relay outputs: 6, of which 3 safe
✓ Standard outputs: 2
✓ Pulse outputs: 2 with cross-fault detection
✓ Expansion: 2 modules plus fieldbus
✓ Programming: up to 800 STL instructions
✓ PFH: 3.0 · 10⁻⁹ at category 4
✓ Safety rating: SIL3 (IEC 61508) · PL e (EN ISO 13849-1)
✓ Supply: 24 VDC, −10 / +15 % · power 2.4 W

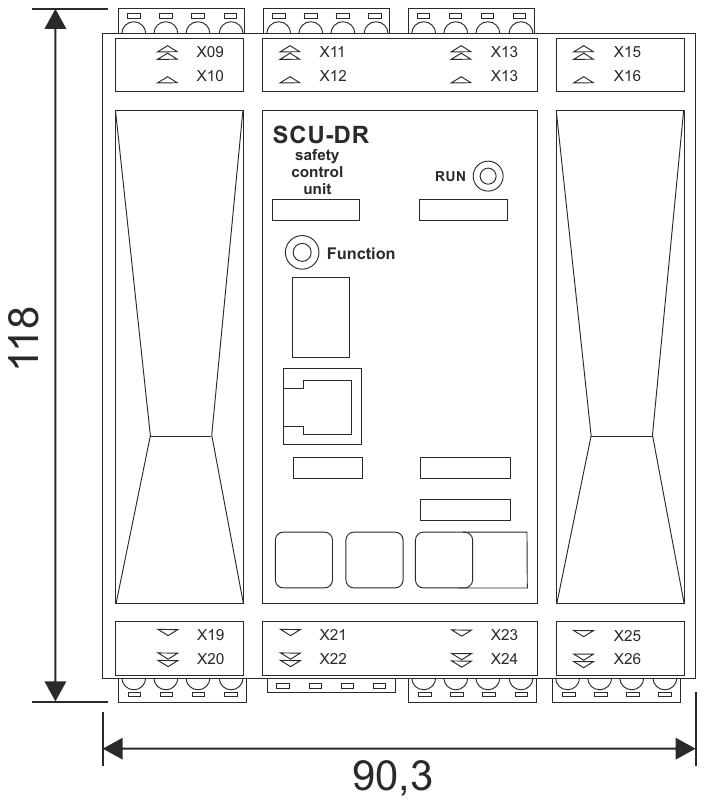

✓ Housing: DIN rail · protection IP20
✓ Versions: standard · with FSoE (EtherCAT) · with PROFISAFE (PROFINET)
