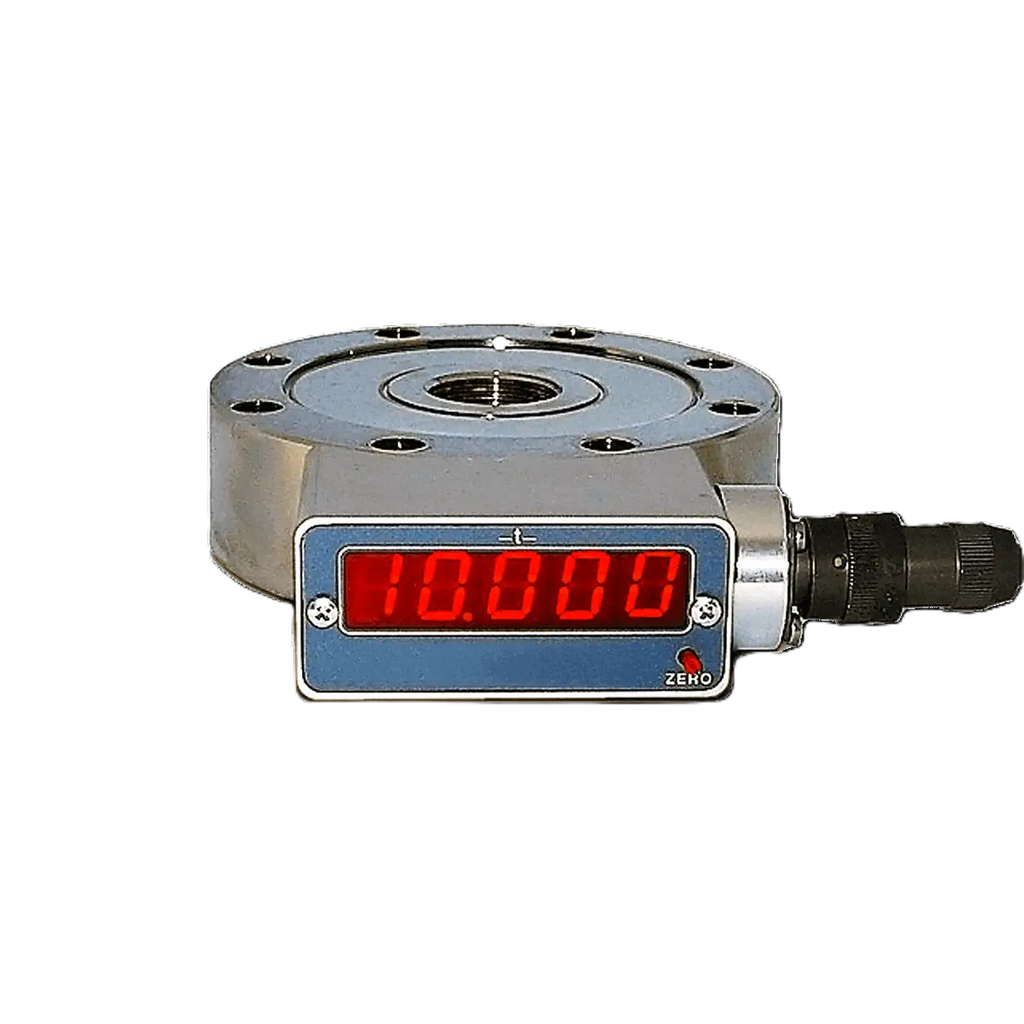

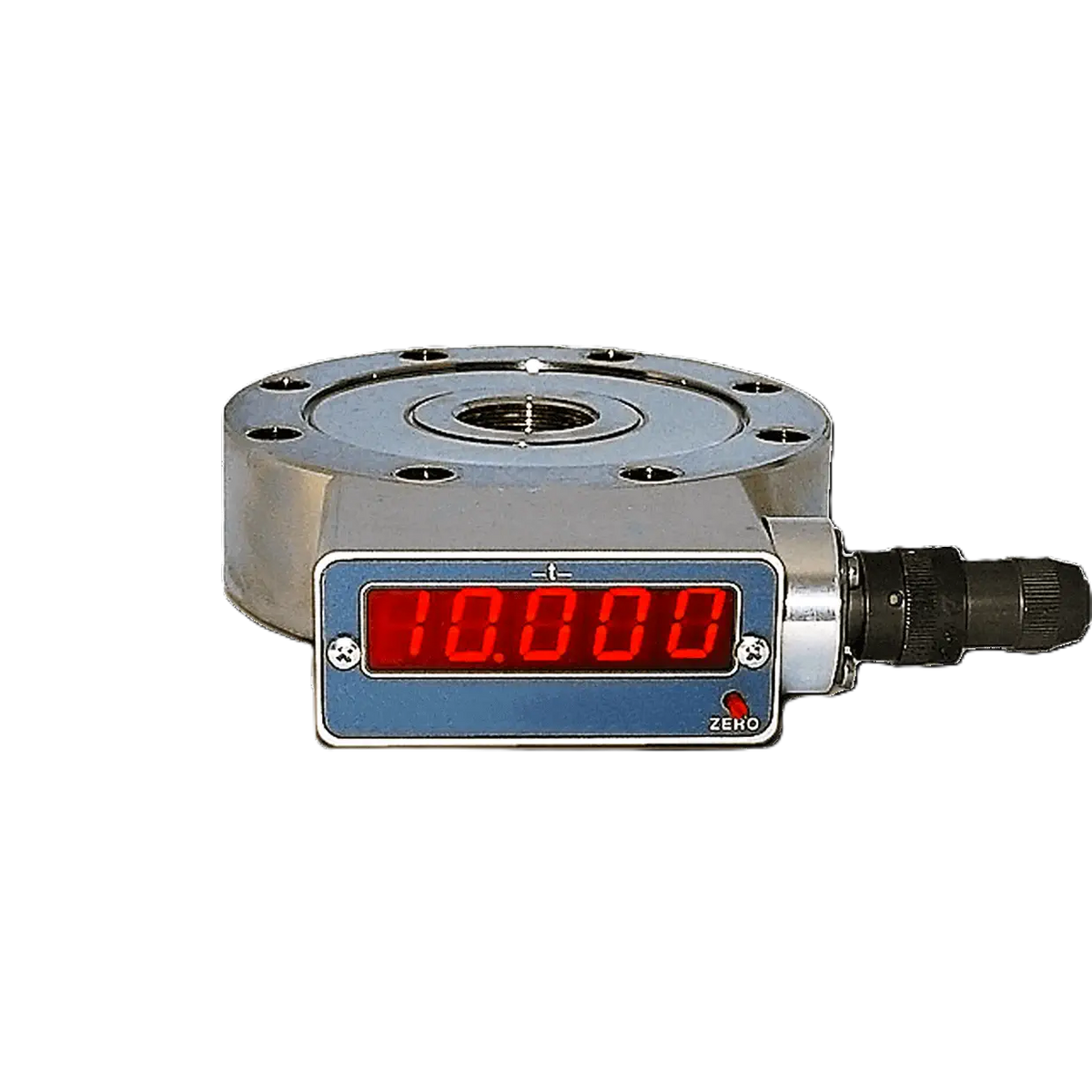

LLAD flange load cell with integrated display

The LLAD is a flanged load cell with integrated display.

It is designed for force and load measurements where the measured value should be read directly from the sensor without the need for a separate display unit.

The rated load range extends from 500 kg to 100,000 kg, i.e., from 0.5 t to 100 t. The accuracy is ≤ ±0.05% FS, non-linearity and hysteresis are each ≤ ±0.05% FS, and creep is ±0.1% FS. The display resolution ranges from 0.1 kg to 10 kg, depending on the rated load; the zero point can be adjusted by ±10% FS.

The recommended power supply is 12 V DC with a maximum current consumption of 25 mA, the maximum supply voltage is 15 V DC; the insulation resistance is ≥ 2 GΩ at 100 V. Connection is via the MIL PT02E10-6P connector with a 5 m cable. The housing is made of stainless steel and fully laser-welded, the compensated temperature range is from -10 °C to +40 °C. Permissible operating load is 120% FS, safety overload is 150% FS and breaking load is > 300% FS, the maximum dynamic load is 75% FS. The cell complies with CE, RoHS and REACH; an ISO-17025 calibration is available on request.
