Description

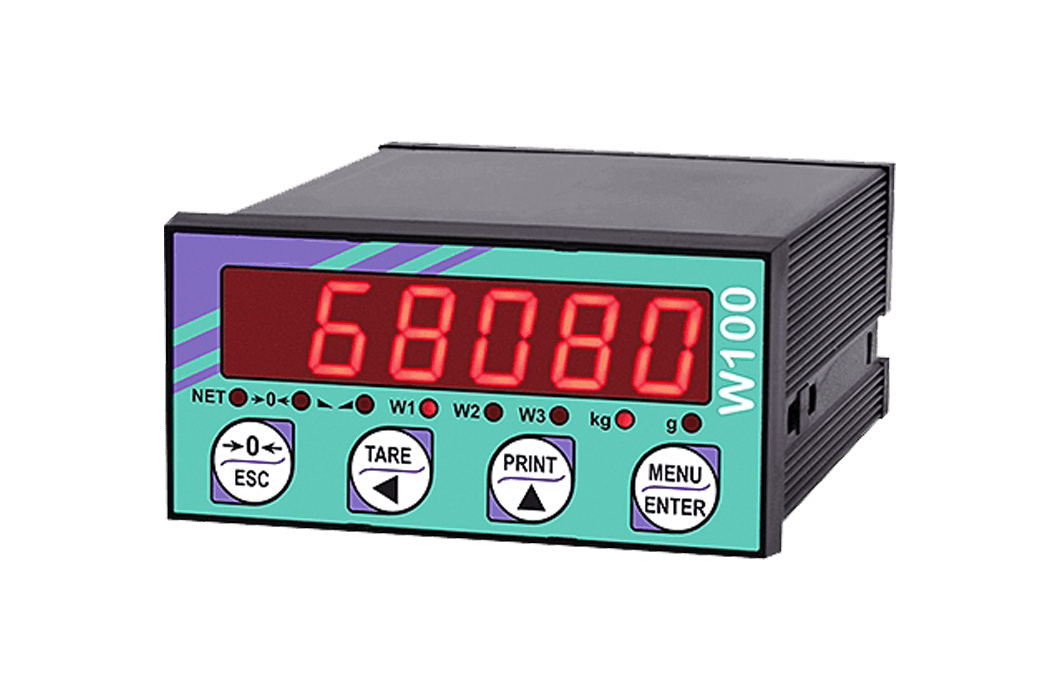

Weighing indicator EILA in a DIN case, i.e. a case to DIN standard, with dimensions of 96 x 48 x 130 mm for industrial use. The front panel is certified to IP54 and equipped with a 4-key membrane keypad and 8 indicator LEDs. The weighing indicator also offers a clock and calendar function.
Features of the EILA weighing indicators
✓ Panel front mounting
✓ 6-digit red LED display (14 mm digit height)
✓ RS485/RS232 interfaces (Modbus RTU/ASCII protocols)
✓ 3 digital inputs, 5 relay outputs
✓ OIML R76:2006, class III, 10000 verification divisions 0.2 µV/VSI certified
✓ OIML R61 - WELMEC Guide 8.8:2011 (MID) certified
✓ A/D converter 24 bit (16000000 digits) 4.8 kHz
✓ 16 bit analog output. 0/4 … 20 mA; 0 … 5/10 V; ±5/10 V - on request
CAD model:
EILA
