Description

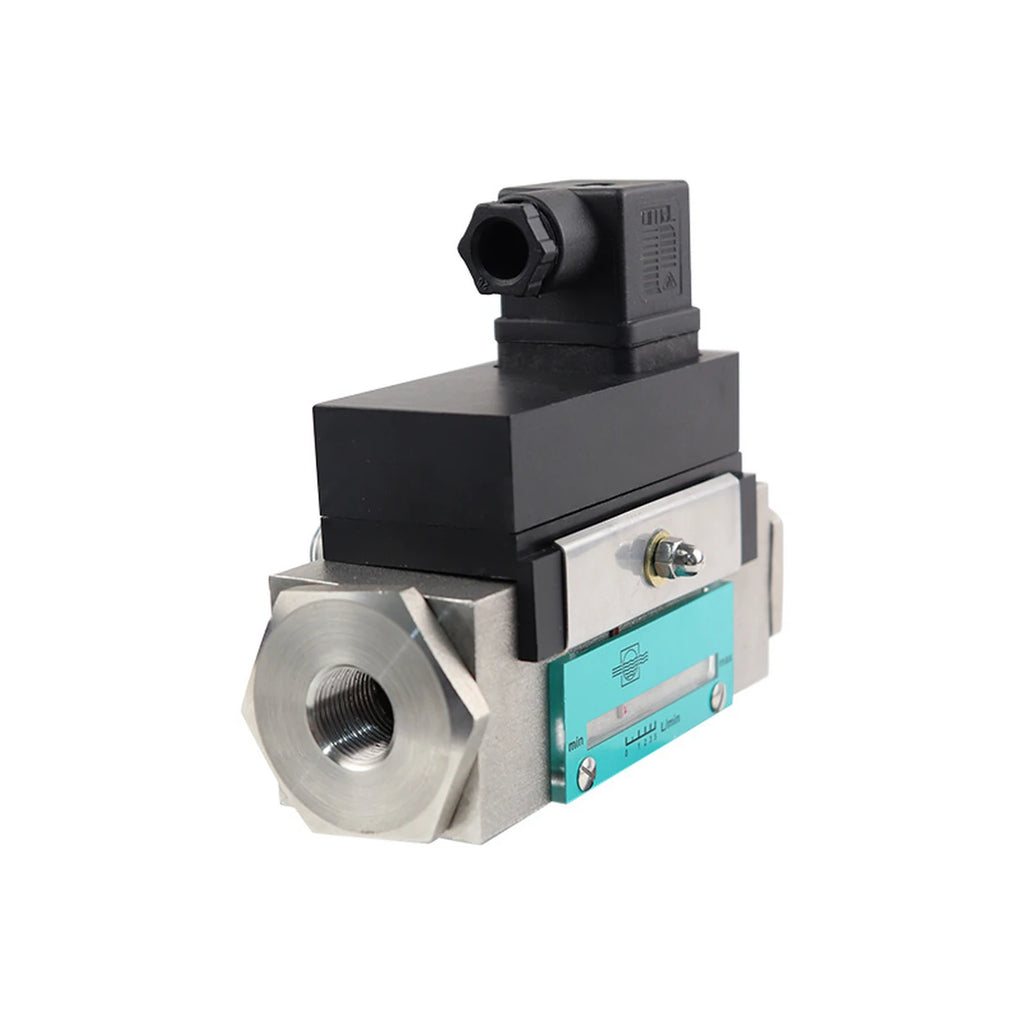

The QSKG is a mechanical piston flow switch with a magnetic piston and the switching element outside the medium. It is particularly suited to liquids in hydraulics, lubrication and circulating systems.
A magnetic piston on a precision spring is displaced by the flow, and the magnet operates a microswitch or reed contact outside the wetted part. Setting ranges by size 0.8 … 5, 2 … 12, 3 … 30, 5 … 40 and 6 … 60 L/min. Repeatability ≤ ± 3 % of range; accuracy on request. Output one changeover contact, switching capacity 240 V AC / 110 V DC, 1.5 A. Details of the supply voltage are available on request. Connection M12 × 1. An optional pointer head shows the instantaneous flow in L/min between the marks min and max.
Switch housing and spring in stainless steel, electronic enclosure in PC, weight 1.2 … 1.4 kg by size. Process connection G1/4, G3/8, G1/2, G3/4 or G1 female. Pressure rating 200 bar (stainless steel), ambient temperature -20 … +70 °C, protection IP65. A declaration of conformity is available on request. The permissible medium temperature is available on request. We will confirm the availability of the 3 … 30 L/min range and of the pointer head on request.
Benefits at a glance
- Mechanical principle, no electronics in the medium
- Mechanical and electrical parts completely separated
- Five setting ranges from 0.8 to 60 L/min
- Repeatability ≤ ± 3 % of range
- Changeover contact up to 240 V AC / 110 V DC, 1.5 A
- Pressure rating 200 bar with stainless body
- Female thread G1/4 to G1
- Protection IP65, M12 × 1 connection
