Description

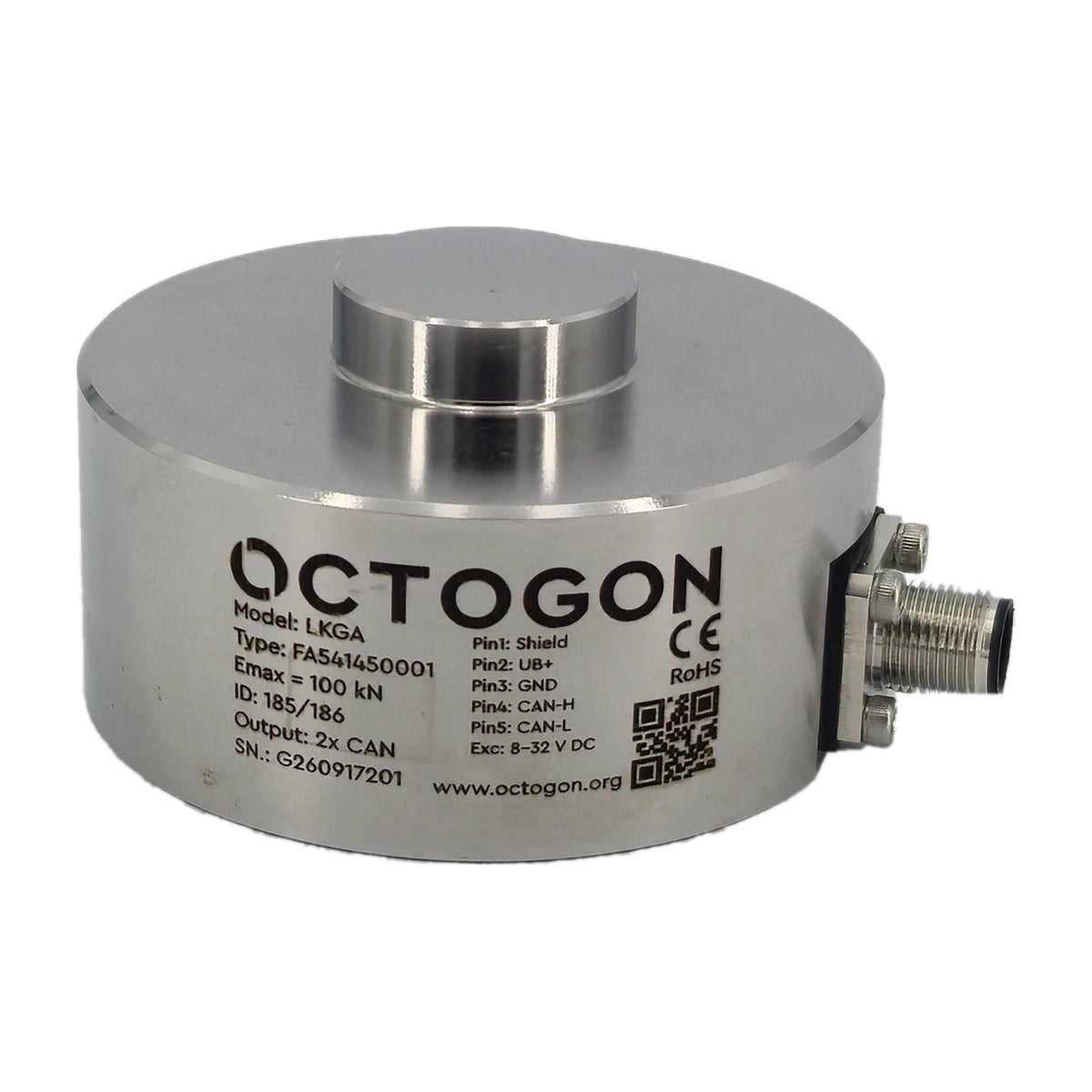

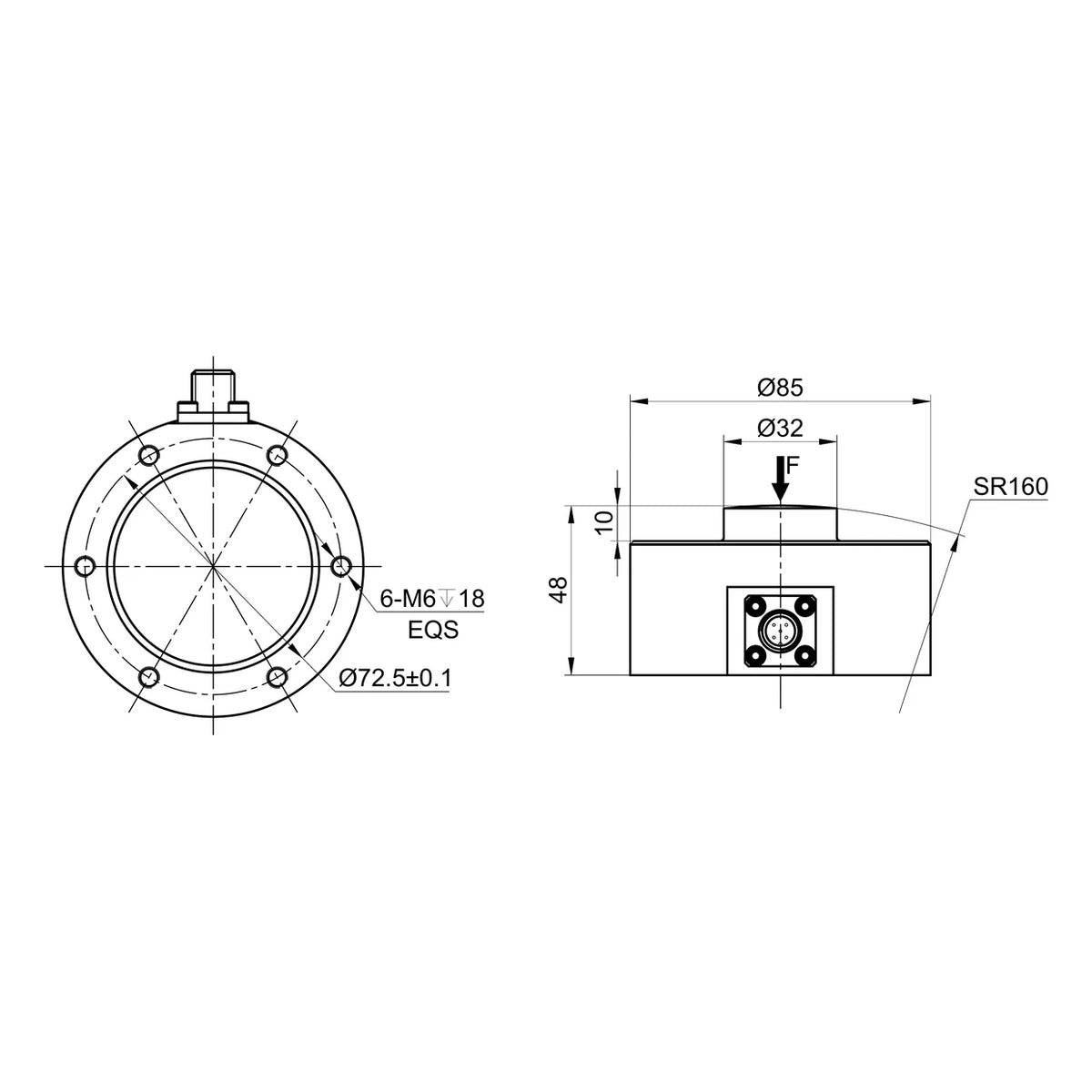

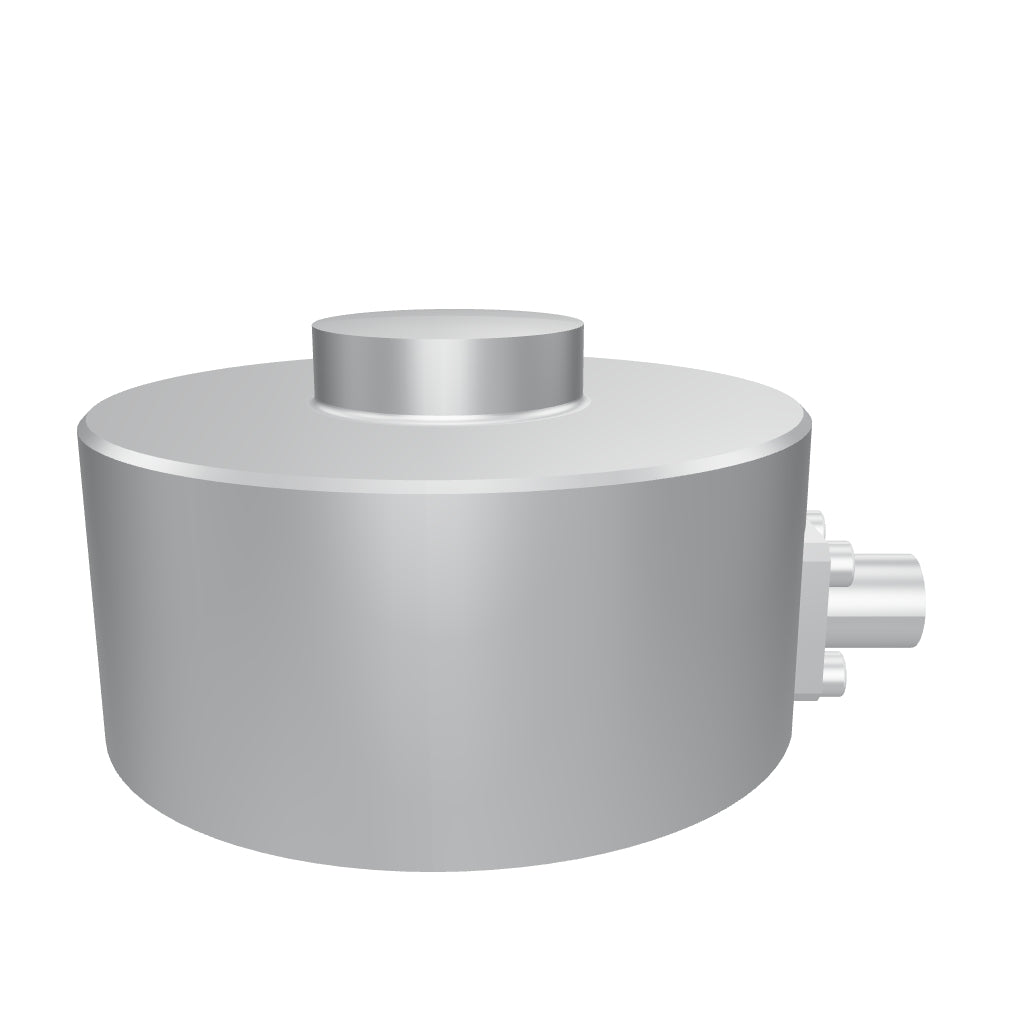

The LKGA is a load cell for 50, 100 or 200 kN with built-in CANopen electronics: the measured value is sent digitally over the bus, as a TPDO and as a safety-related SRDO to CiA 304. The stainless steel body is protected to IP67. The load is applied through a load button Ø 32 mm with spherical radius SR 160; the cell is fixed with six M6 threads on the Ø 72.5 mm pitch circle. Supply and bus run through an M12 × 1, 5-pin device connector. The SRDO sends every measured value twice, the second frame bitwise inverted; node ID and baud rate are set via SDO.
Measurement
- Capacity 50, 100 or 200 kN (200 kN optional)
- CAN output value 0 … 50,000 / 100,000 / 200,000
- Non-linearity, hysteresis, repeatability ± 1 % F.S. each
- Temperature effect on output and on zero ± 0.25 % F.S. / 10 °C each
- Compensated temperature range −10 … +60 °C, operating −20 … +80 °C
- Safe overload 150 %, ultimate overload 200 %
Communication and connection
- CANopen to CiA 301, CANopen Safety to CiA 304 (SRDO)
- TPDO, SDO, NMT, SYNC, heartbeat, EMCY
- 250 kbit/s factory setting, 10 … 1000 kbit/s adjustable
- Node ID and baud rate via SDO
- Recommended excitation 8 … 32 V

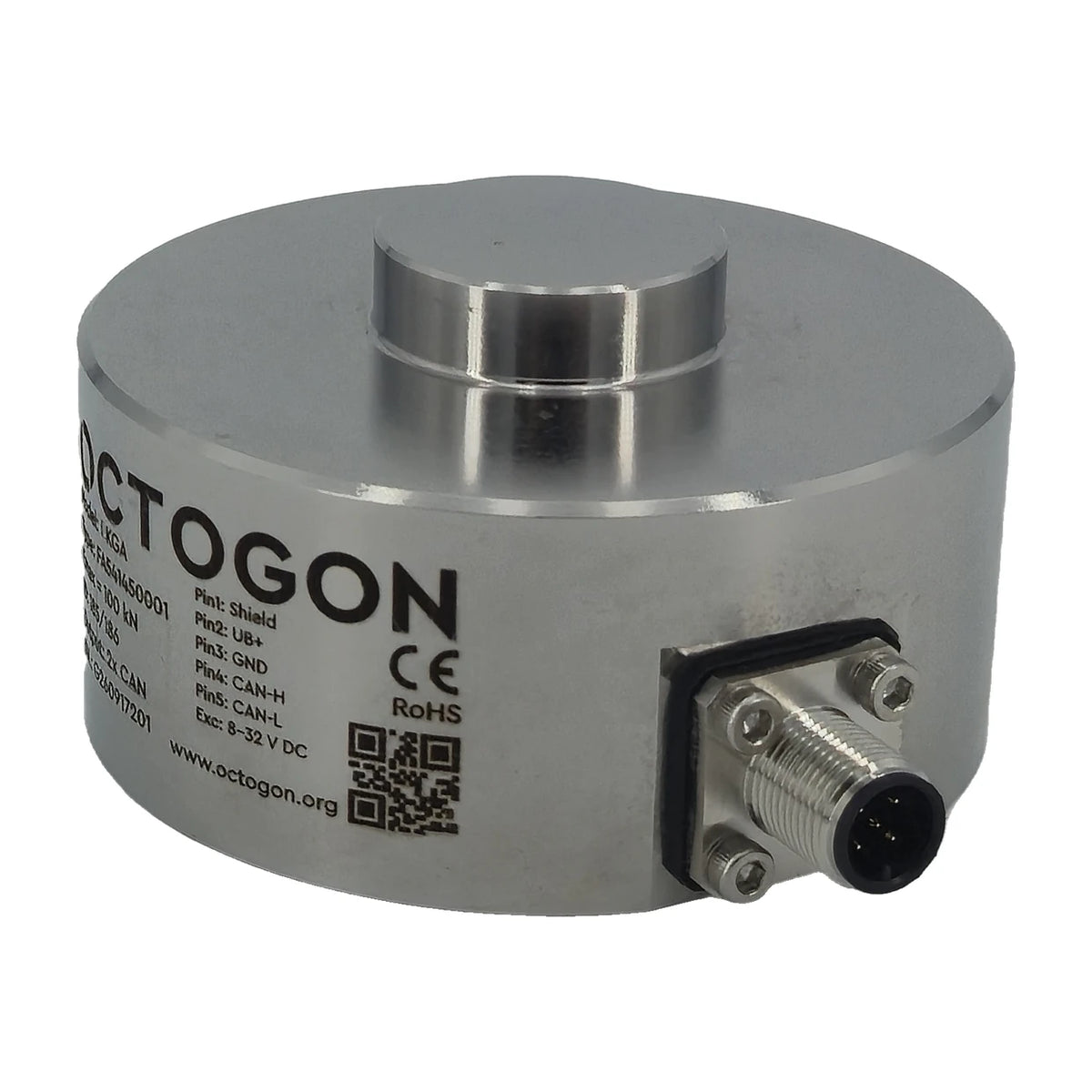

- M12 × 1, 5-pin device connector: shield, UB+, GND, CAN_H, CAN_L

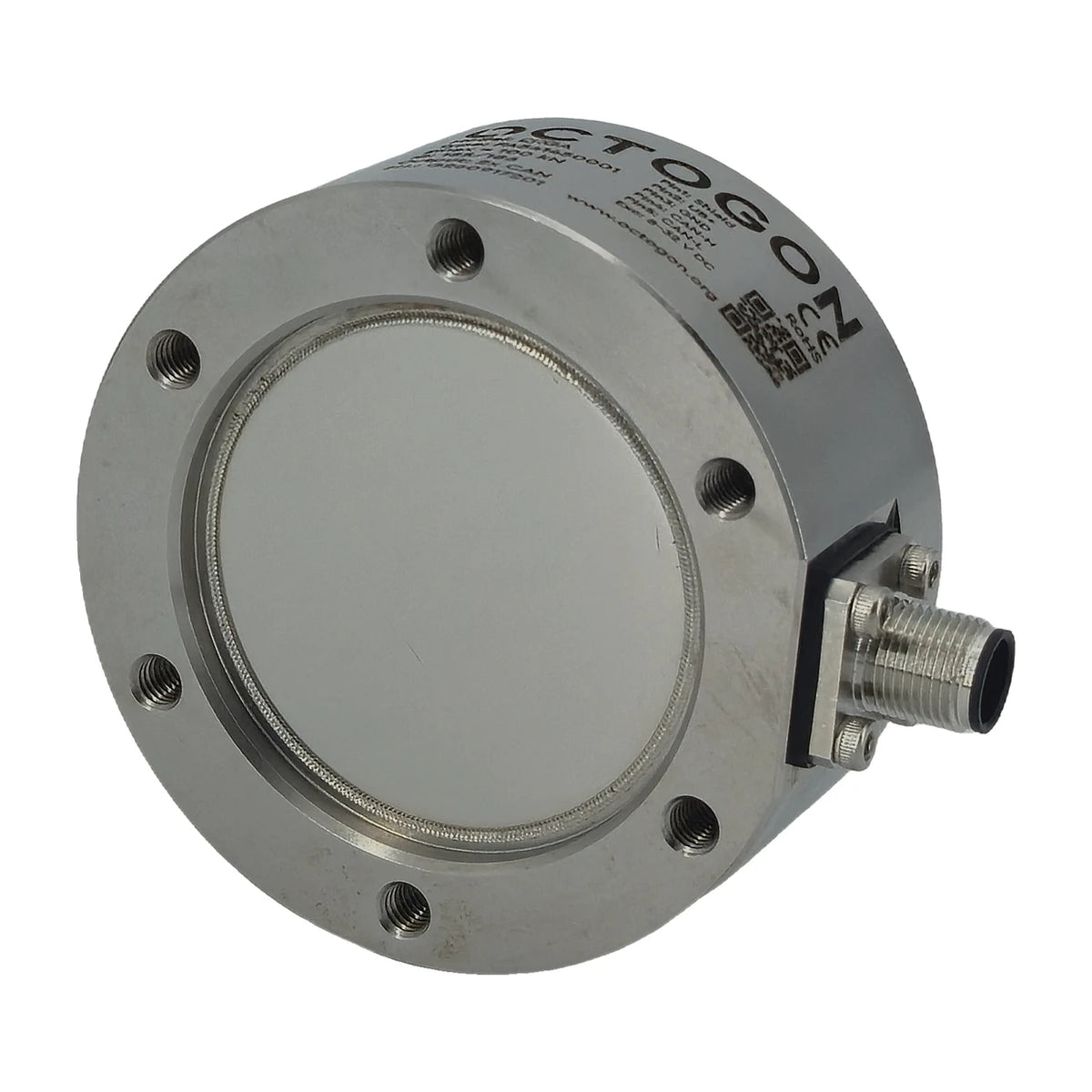

- Stainless steel, IP67, mounting 6 × M6 on Ø 72.5 mm pitch circle
All technical data, dimensions and available versions are listed in the datasheet for download.
