Description

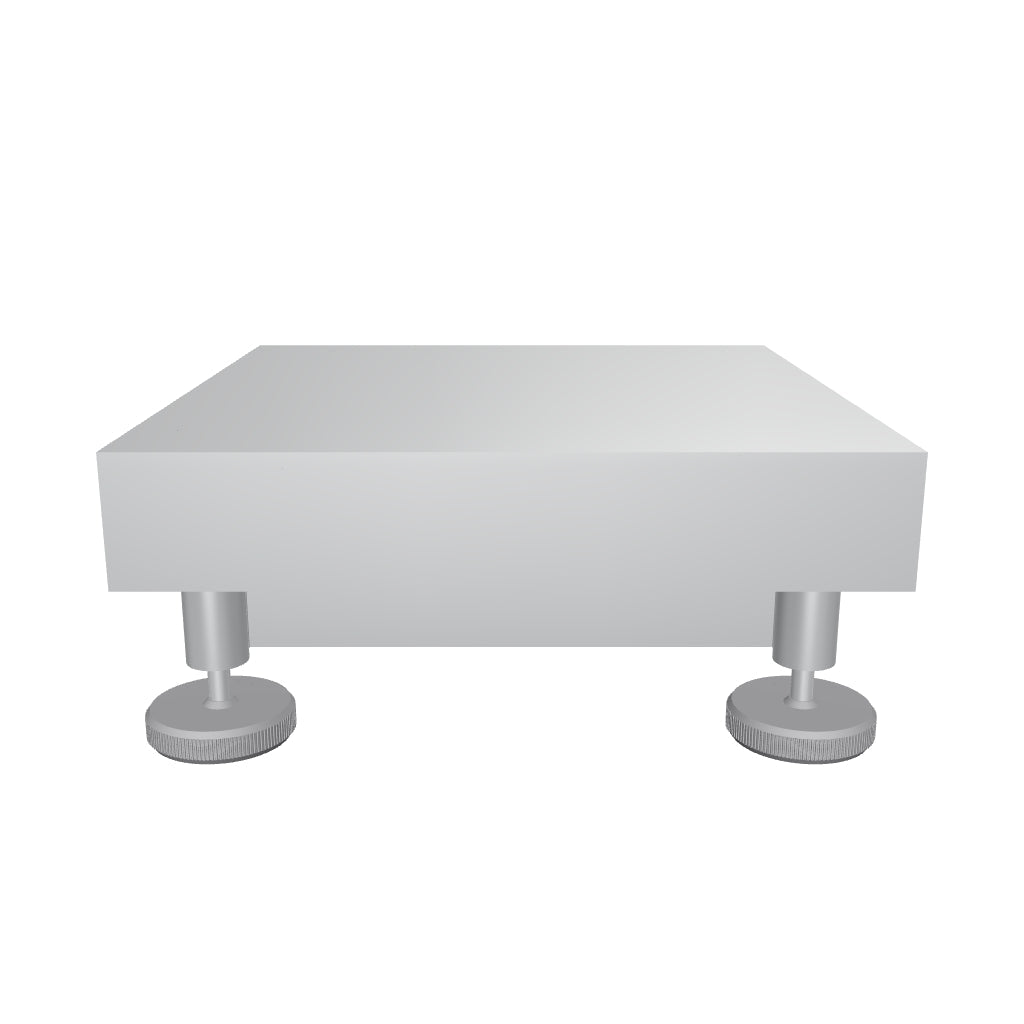

The LELC is a single-cell weighing platform of stainless steel with a load cell of aluminium alloy for weighing up to 600 kg. It is particularly suited to applications that call for a tubular frame and load plate of stainless steel.
The platform is available for nominal loads of 6 kg to 600 kg in sizes from 300 × 300 mm to 800 × 800 mm and meets accuracy class C3 to OIML R60 at all nominal loads; C4 is available on request for selected nominal loads. A protection kit for the load cell is included from 60 kg to 300 kg. The platform stands on M10 feet of stainless steel and polyamide, and a connection for an indicator column is provided.
Tubular frame and load plate are made of AISI 304 stainless steel, and the aluminium alloy load cell is rated IP65. ATEX and NTEP are also available on request.
Benefits at a glance
- Single-cell weighing platform of stainless steel
- Nominal loads from 6 kg to 600 kg
- Platform 300 × 300 mm to 800 × 800 mm
- Accuracy class C3 to OIML R60, C4 on request
- Aluminium alloy load cell, IP65 protection
- Tubular frame and load plate of AISI 304 stainless steel
- Protection kit for the load cell from 60 kg to 300 kg
- M10 feet of stainless steel and polyamide
- Connection for indicator column
- ATEX and NTEP on request
