Description

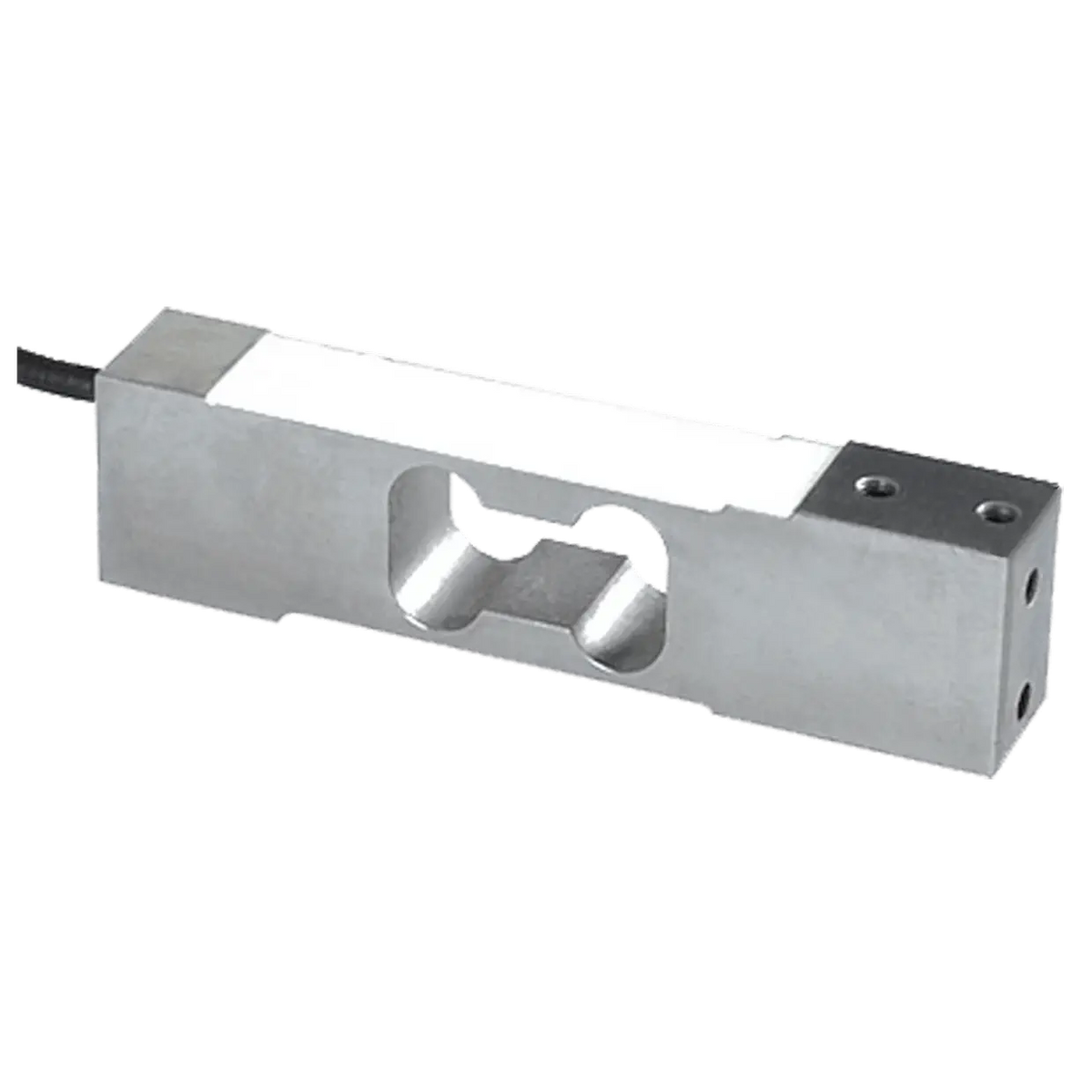

The LCLH is a robust single point load cell for platform scales and industrial weighing systems. Thanks to its off-centre load compensation, it is particularly suitable for applications in which a platform is to be monitored reliably with just one load cell.
The load cell is available in measuring ranges from 10 kg to 200 kg and is designed for platform sizes up to 400 × 400 mm. The total error is max. ±0.03 % FS. The housing made of stainless steel AISI 420 / 1.4034 and protection class IP67 allow use even in demanding ambient conditions.
An ATEX version for zone 2/22 is available on request.
Advantages at a glance
- Single point load cell for platform scales
- Measuring ranges from 10 kg to 200 kg
- For platforms up to 400 × 400 mm
- Total error ≤ ±0.03 % FS
- Stainless steel housing made of AISI 420 / 1.4034
- Protection class IP67
- Full Wheatstone bridge in 6-wire design
- Suitable for tension and compression loads
