Description

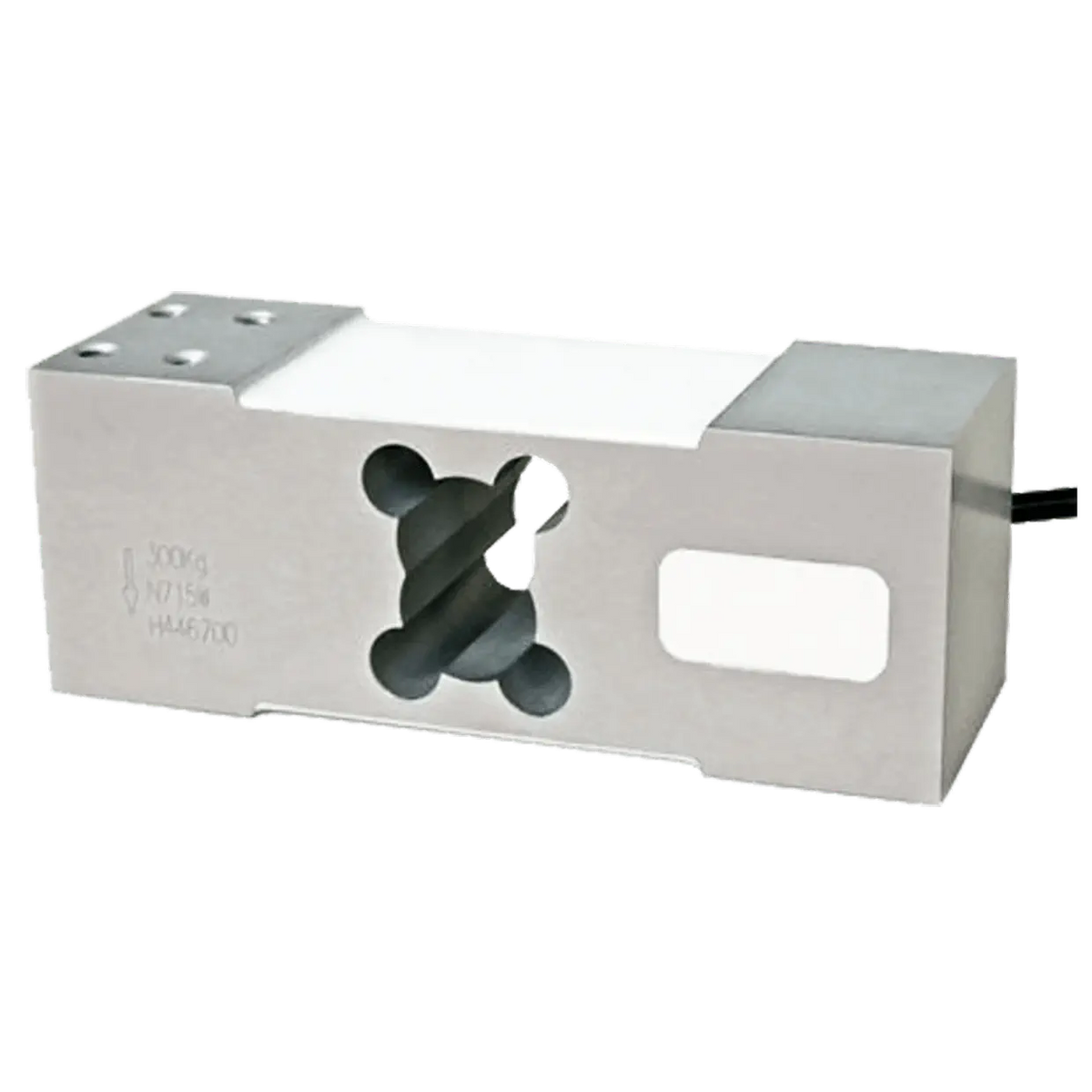

The LCLD is a robust single point load cell for platform scales with larger dimensions. It is suitable for industrial weighing systems, dosing plants and checkweighers in which loads must be recorded reliably even when placed off-centre.
The load cell is available in measuring ranges from 50 kg to 500 kg and is designed for platform sizes up to 600 × 600 mm. Accuracy classes C3 and C4 allow an application-specific choice. The total error is max. ±0.02 % FS for C3 and ±0.017 % FS for C4.
An ATEX version for zone 2/22 is available on request.
Advantages at a glance
- Single point load cell for larger platform scales
- Measuring ranges from 50 kg to 500 kg
- For platforms up to 600 × 600 mm
- Accuracy classes C3 and C4
- Total error down to ≤ ±0.017 % FS
- Housing made of aluminium alloy
- Protection class IP65
- Full Wheatstone bridge in 6-wire design
