Description

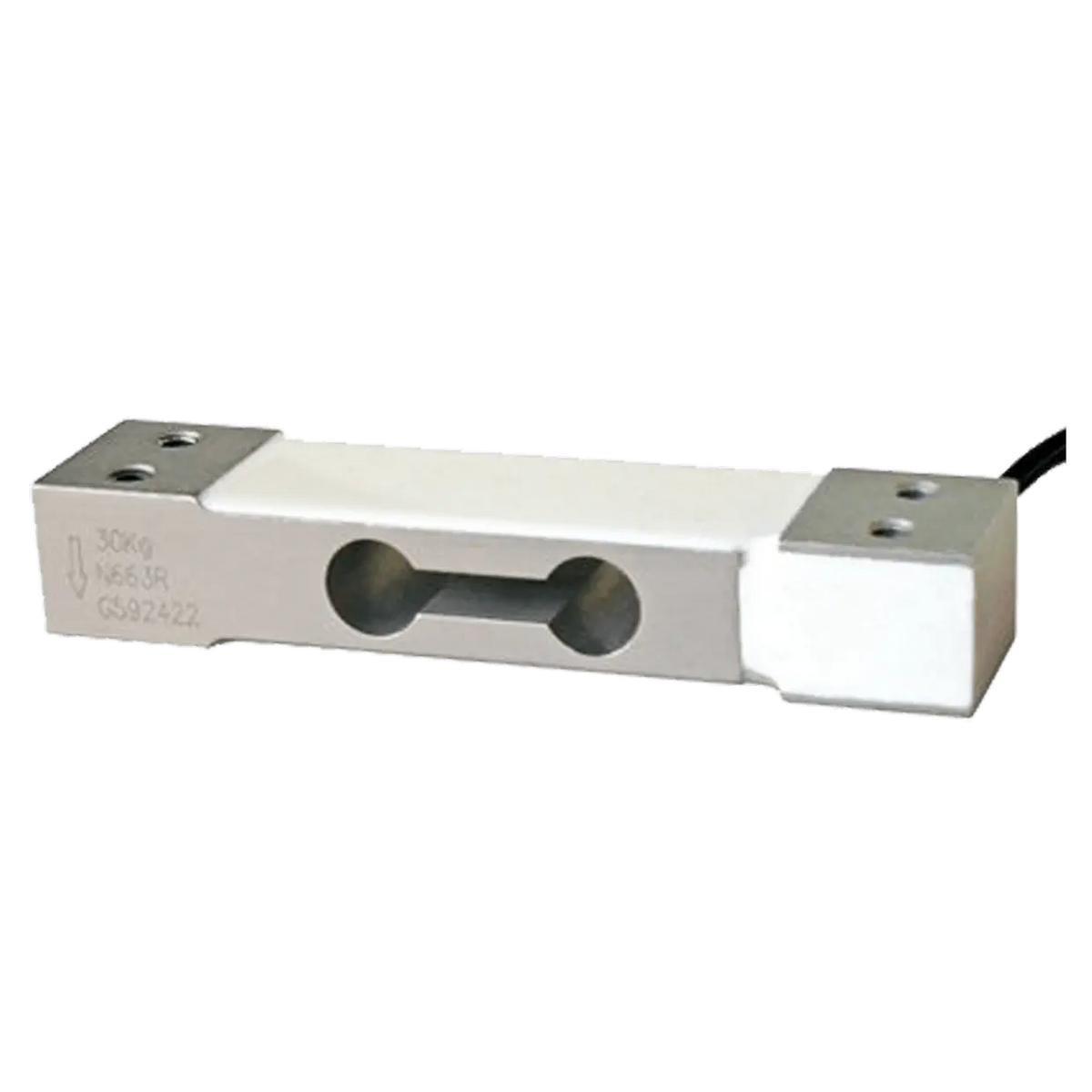

The LCLB is a versatile single point load cell for precise platform scales, dosing systems and industrial weighing solutions. Its low weight and compact aluminium design make integration into existing systems easy.
The load cell is available in measuring ranges from 3 kg to 50 kg and is designed for platform sizes up to 250 × 350 mm. Depending on the version, accuracy classes C3, C4 and C5 are available. The total error is max. ±0.02 % FS for C3, ±0.017 % FS for C4 and ±0.014 % FS for C5.
An ATEX version for zone 2/22 is available on request.
Advantages at a glance
- Single point load cell made of aluminium alloy
- Measuring ranges from 3 kg to 50 kg
- For platforms up to 250 × 350 mm
- Accuracy classes C3, C4 and C5
- Total error down to ≤ ±0.014 % FS
- Protection class IP65
- Full Wheatstone bridge in 4-wire design
- Suitable for tension and compression loads
