Description

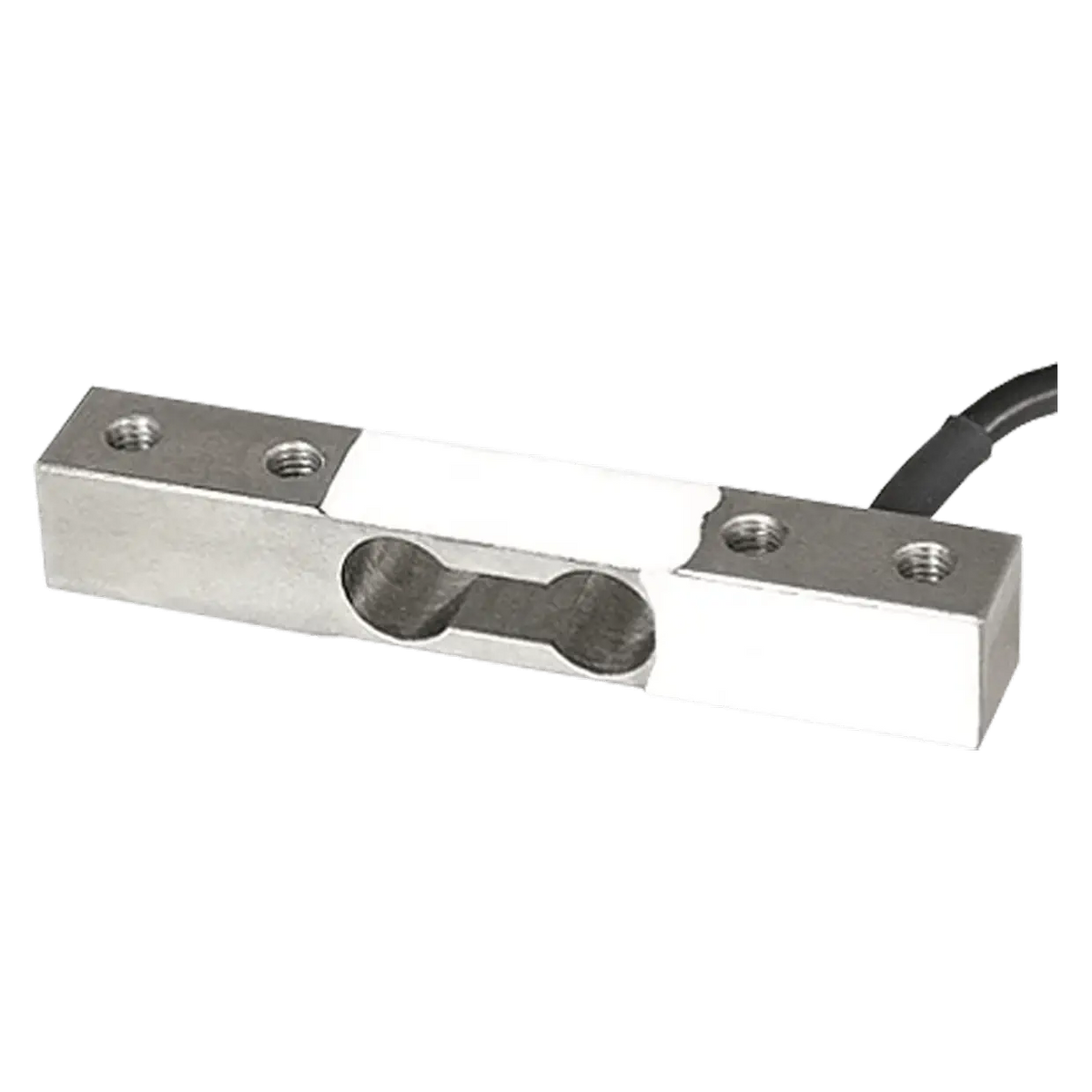

The LCLA is a compact single point load cell for smaller platform scales and weighing systems. It is suitable, for example, for dosing tasks, laboratory scales, checkweighers and compact industrial measuring applications.
The load cell is available in measuring ranges from 5 kg to 50 kg and is designed for platform sizes up to 150 × 150 mm. The total error is max. ±0.05 % FS. The housing is made of stainless steel AISI 420 / 1.4034 and has protection class IP65.
An ATEX version for zone 2/22 is available on request.
Advantages at a glance
- Compact single point load cell
- Measuring ranges from 5 kg to 50 kg
- For platforms up to 150 × 150 mm
- Total error ≤ ±0.05 % FS
- Stainless steel housing made of AISI 420 / 1.4034
- Protection class IP65
- Full Wheatstone bridge in 4-wire design
- Suitable for tension and compression loads
