Description

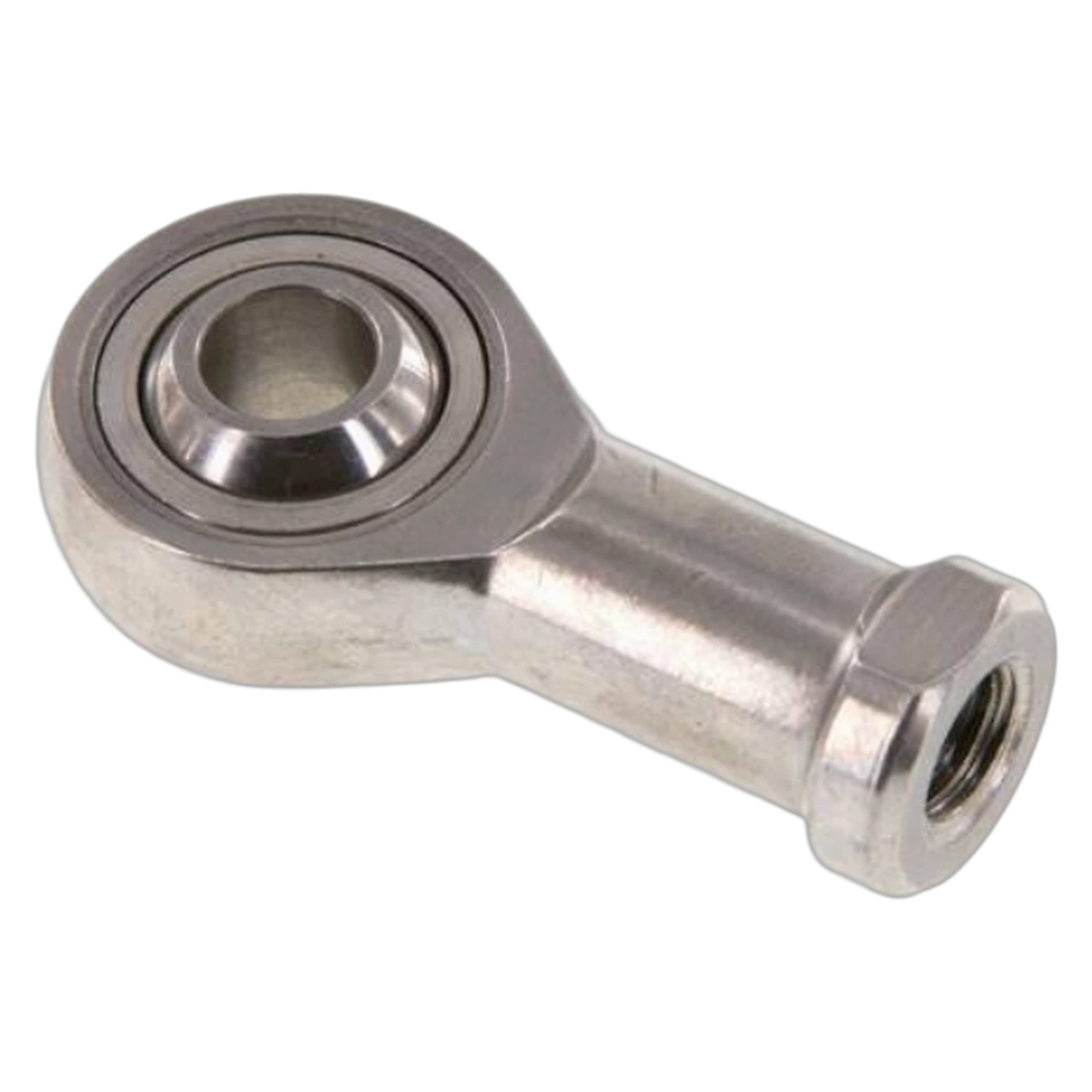

Stainless steel rod end with female thread, in twelve sizes from M4 to M36×2 – with coarse and fine threads.
- Body: 1.4301
- Bearing: 1.4301 / PTFE
- Inner ring: 1.4021
- Connection: female thread A, e.g. for piston rod threads

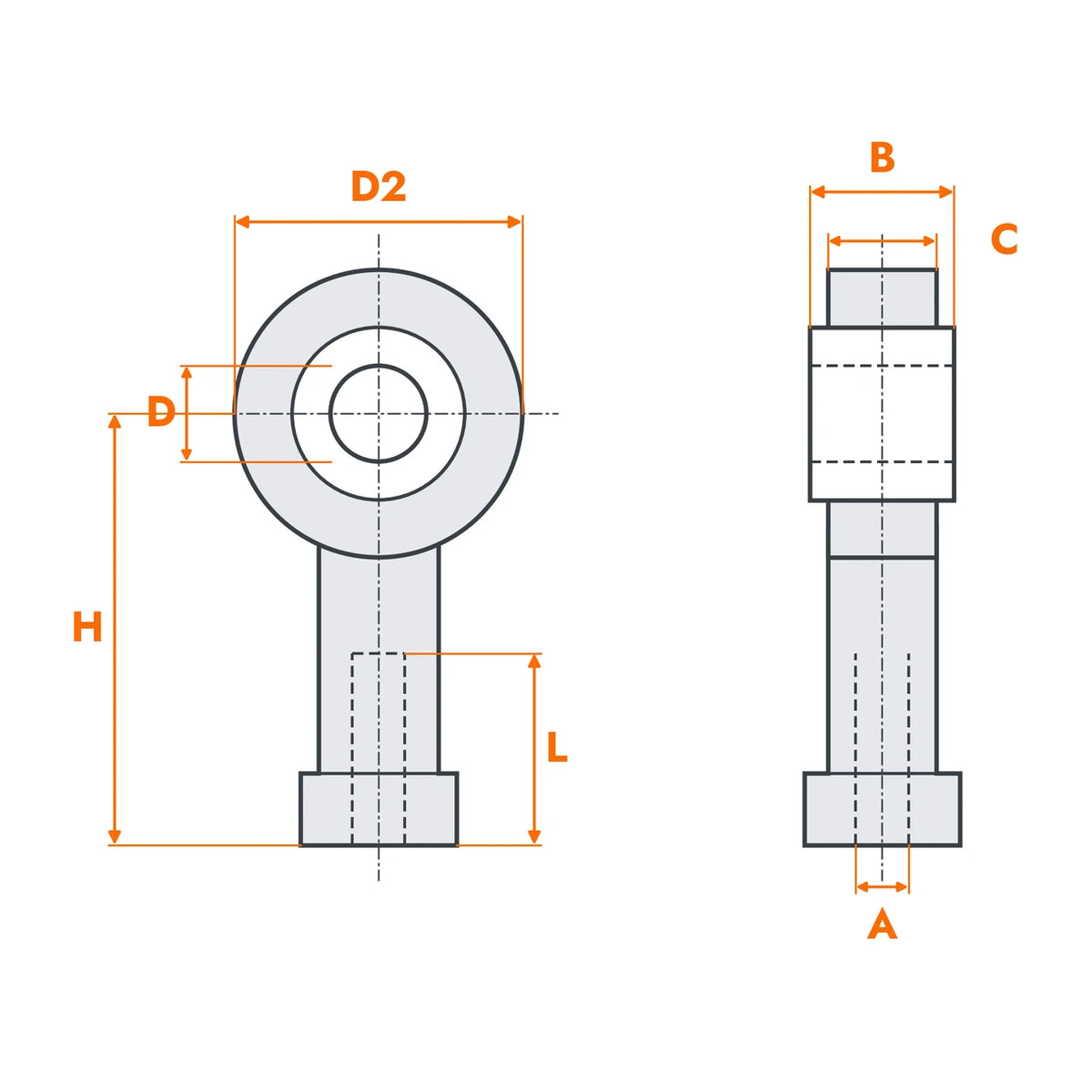

Dimensions (mm)
| Thread A | B | C | D | D2 | L | H |
|---|---|---|---|---|---|---|
| M4 | 8 | 6.0 | 5 | 18 | 10 | 27 |
| M6 | 9 | 6.75 | 6 | 20 | 12 | 30 |
| M8 | 12 | 9.0 | 8 | 24 | 16 | 36 |
| M10×1.25 | 14 | 10.5 | 10 | 28 | 20 | 43 |
| M10 | 14 | 10.5 | 10 | 28 | 20 | 43 |
| M12×1.25 | 16 | 12.0 | 12 | 32 | 22 | 50 |
| M12 | 16 | 12.0 | 12 | 32 | 22 | 50 |
| M16×1.5 | 21 | 15.0 | 16 | 42 | 28 | 64 |
| M16 | 21 | 15.0 | 16 | 42 | 28 | 64 |
| M20×1.5 | 25 | 18.0 | 20 | 50 | 33 | 77 |
| M27×2 | 37 | 25.0 | 30 | 70 | 51 | 110 |
| M36×2 | 43* | 28.0 | 35 | 80 | 56 | 125 |
* deviating from standard. Dimension drawing and table in the datasheet.
