Description

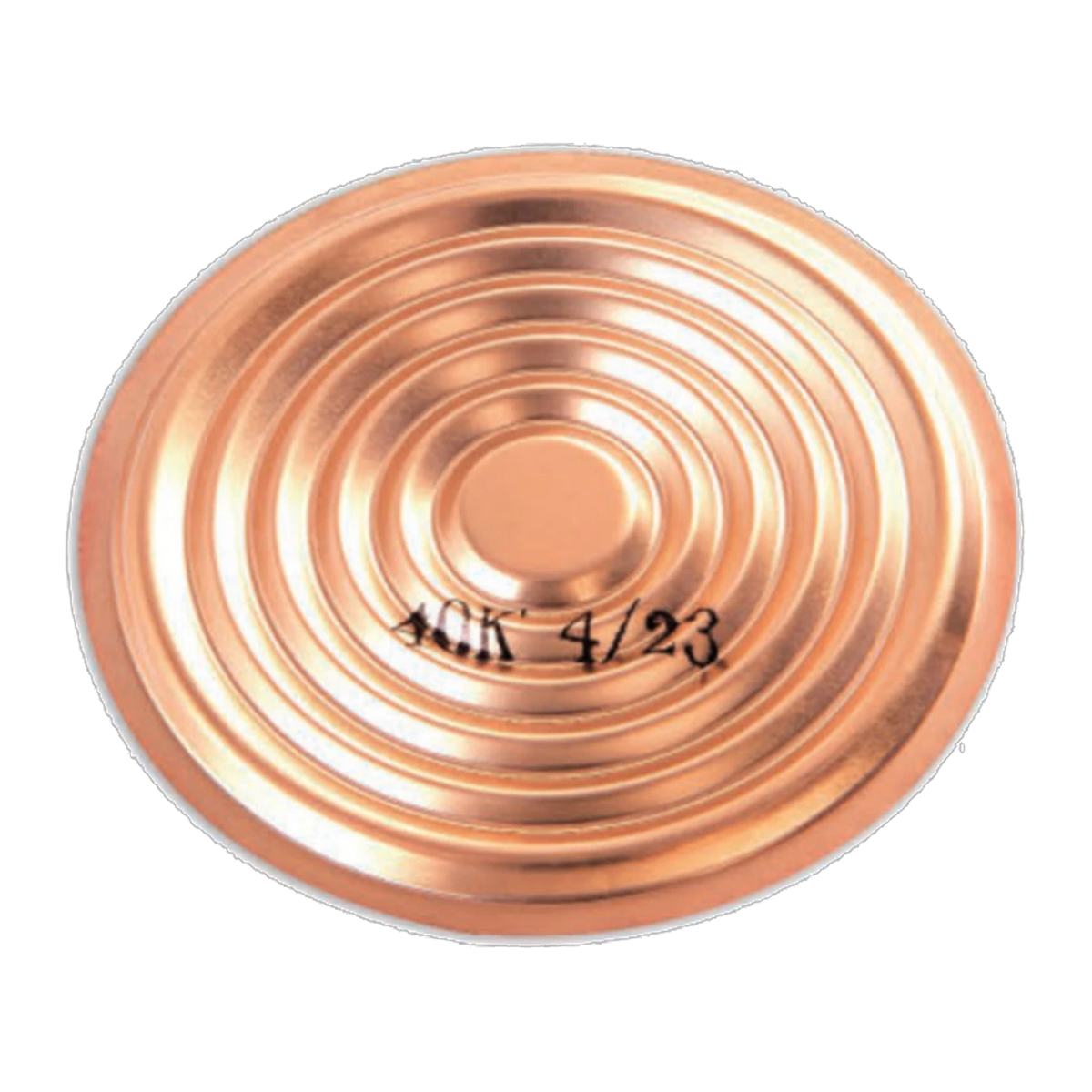

The KKOA is a pressure capsule in copper alloys. It is available in eight sizes from Ø 38 mm to Ø 114 mm; size 38 is made of CuBe, all others of bronze.
Measuring ranges extend from 0 … 0.2 kPa to 0 … 100 kPa; the full scale is set per size within the span given. Precision is 1 · 1.6 · 2.5 %, displacement 1.1 … 1.5 mm.

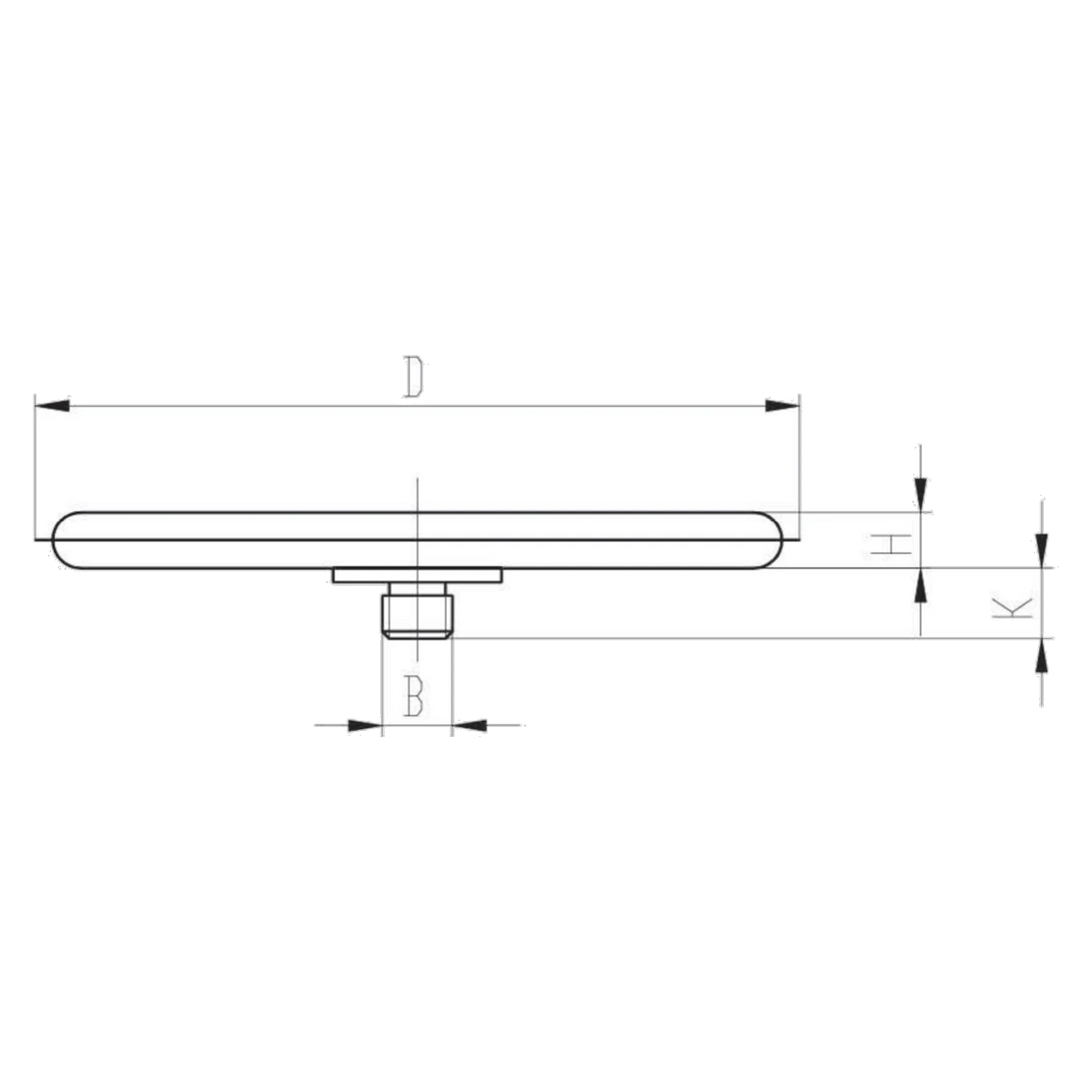

Depending on the size, the height is 3.8 … 5.5 mm, dimension K is 5 mm. The connection thread is M5 or customised. Dimensions by size are given in the datasheet.
Benefits at a glance
- Pressure capsule in CuBe or bronze
- Eight sizes, Ø 38 … 114 mm
- Measuring ranges 0 … 0.2 kPa to 0 … 100 kPa
- Precision 1 · 1.6 · 2.5 %
- Displacement 1.1 … 1.5 mm
- Height 3.8 … 5.5 mm
- Connection thread M5 or customised
