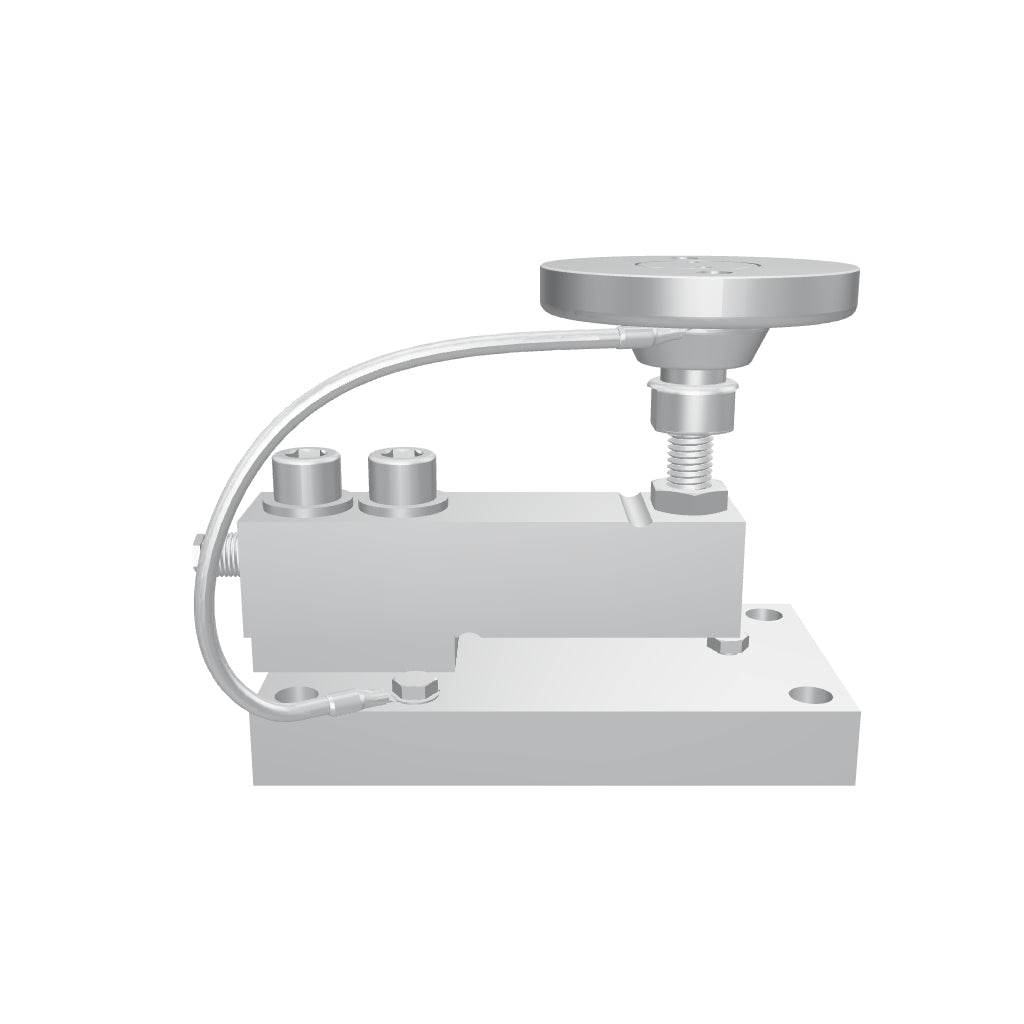

LMLAR weighing module for shear beam load cell 2 t, EN1090

LMLAR weighing module – mounting kit for shear beam load cells with EN1090 certification, suitable for capacities up to 2,000 kg. Protection against lateral forces and anti-tip protection provided by a self-aligning articulated foot made of AISI 304 stainless steel; base plate and block also made of AISI 304 stainless steel. Compensates for uneven mounting surfaces and is height-adjustable. A locking screw prevents damage during transport and installation.

Features

• Capacity 2,000 kg (20 kN)
• With EN1090 certification
• For load cells LBLA | LBLF | LBLJ | LBLK | LBLL
• Made of AISI 304 stainless steel, net weight 2.7 kg
• Load cell not included in delivery
