Mounting accessories for load cells

Mounting accessories for load cells

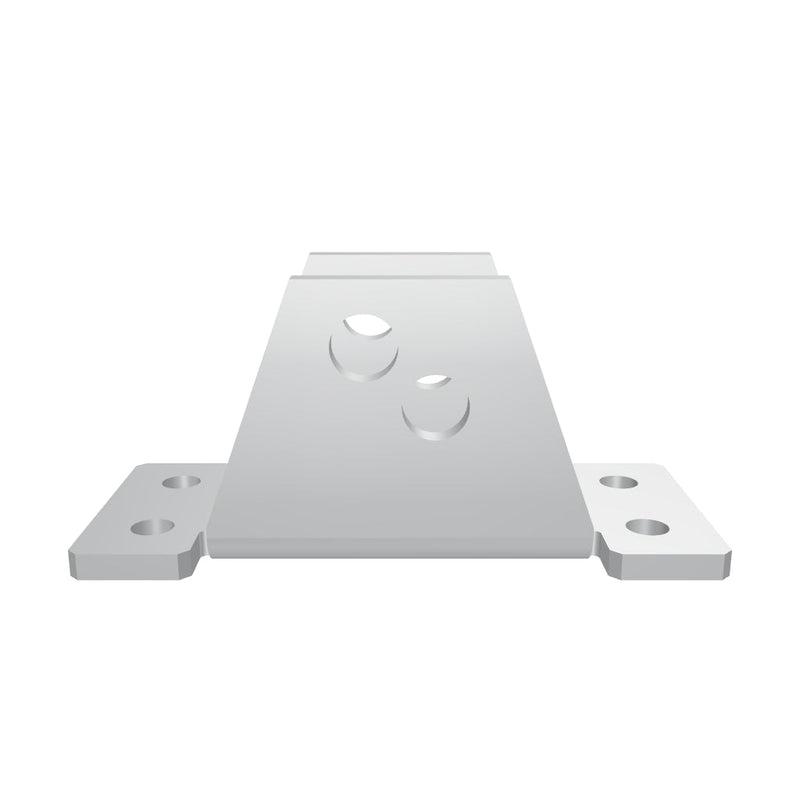

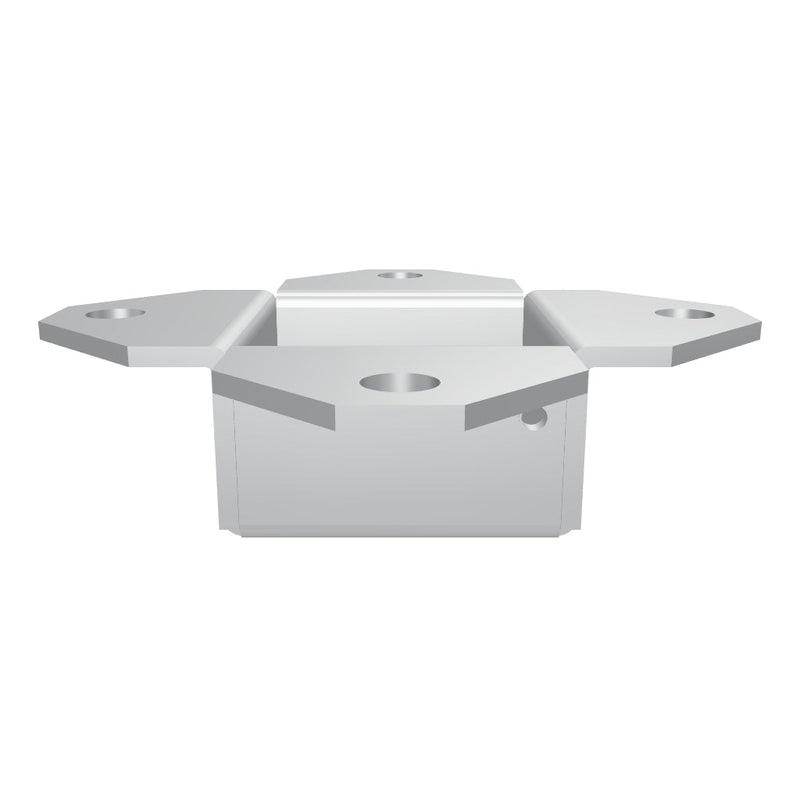

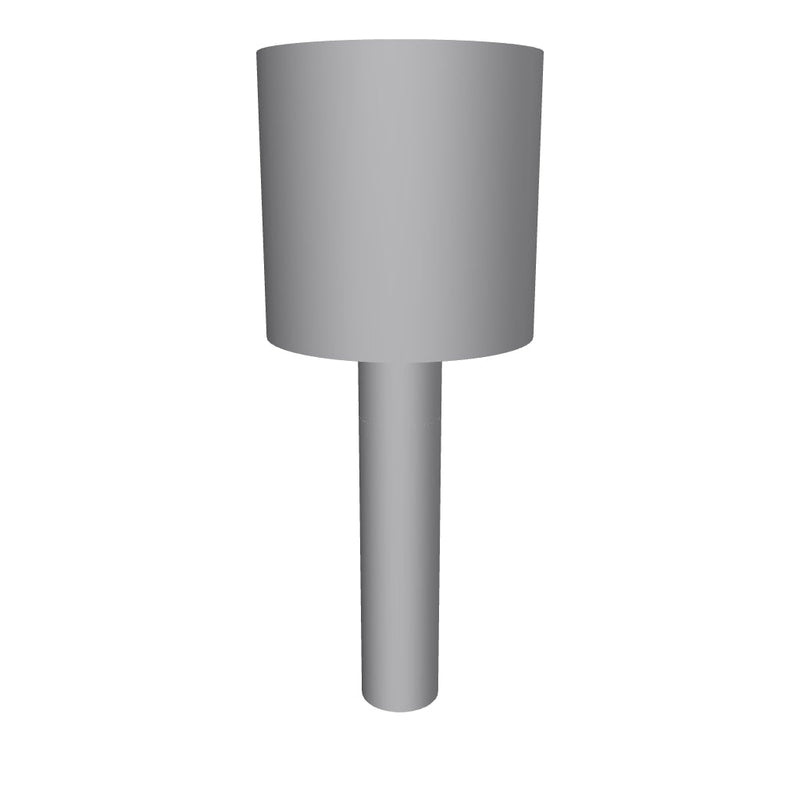

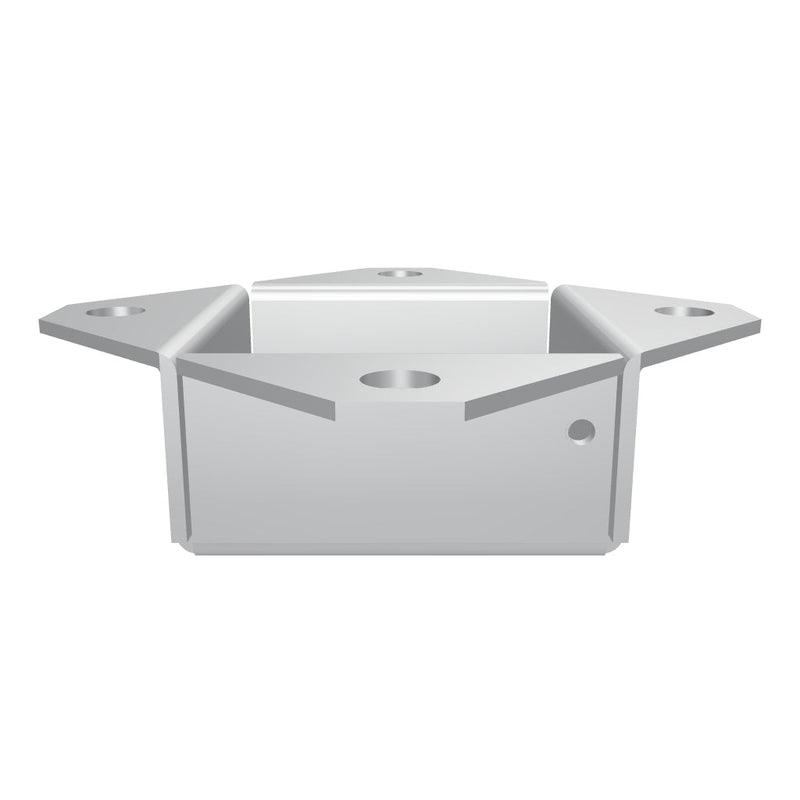

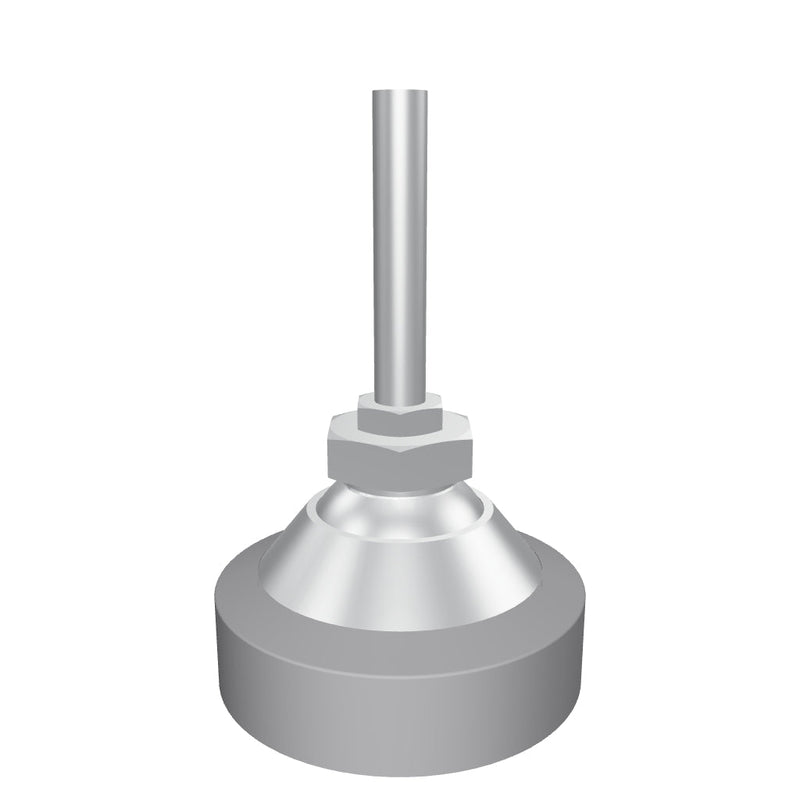

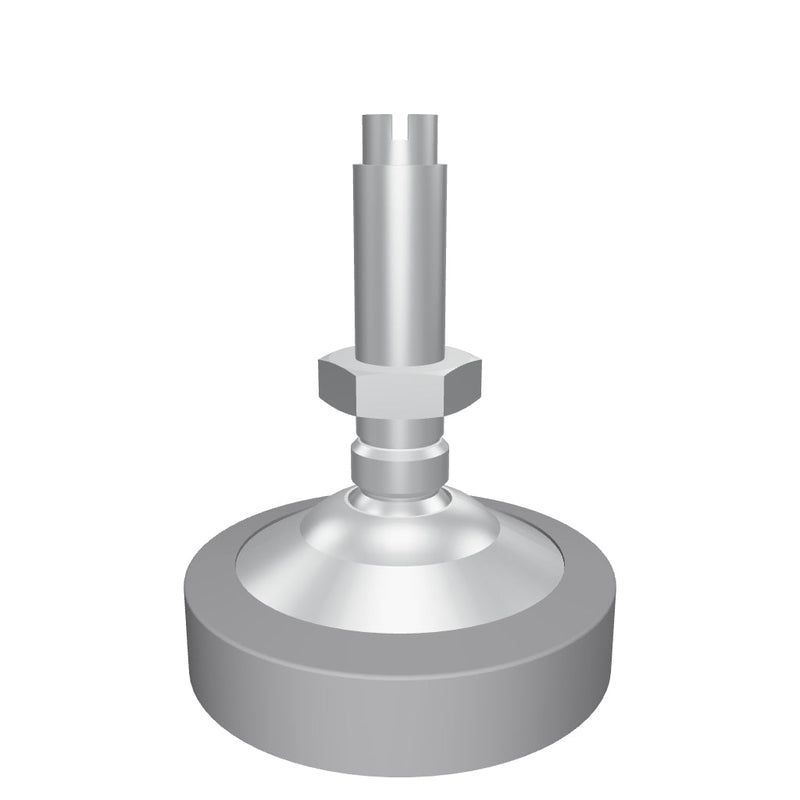

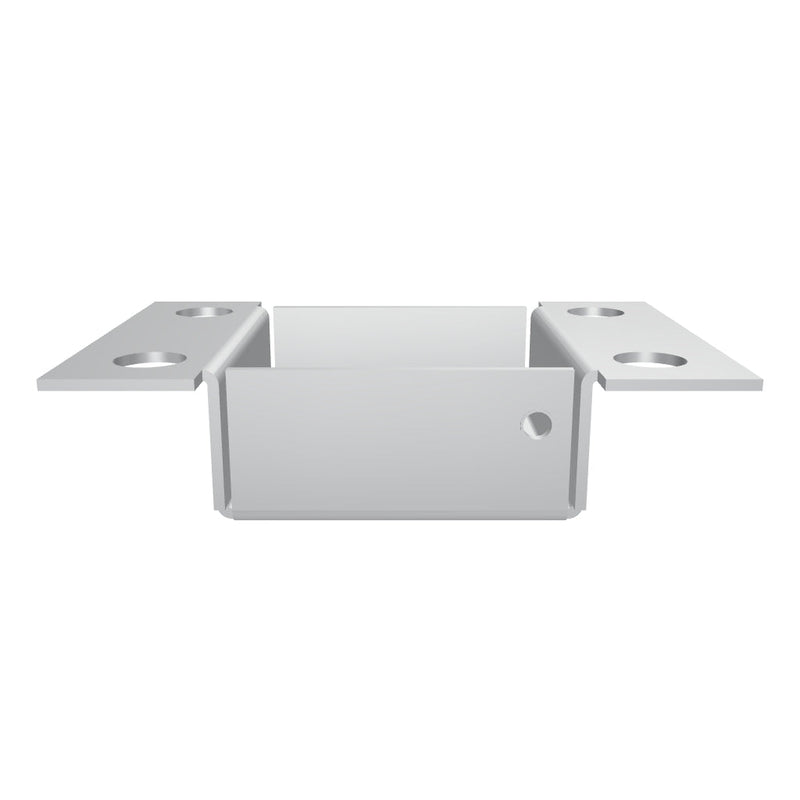

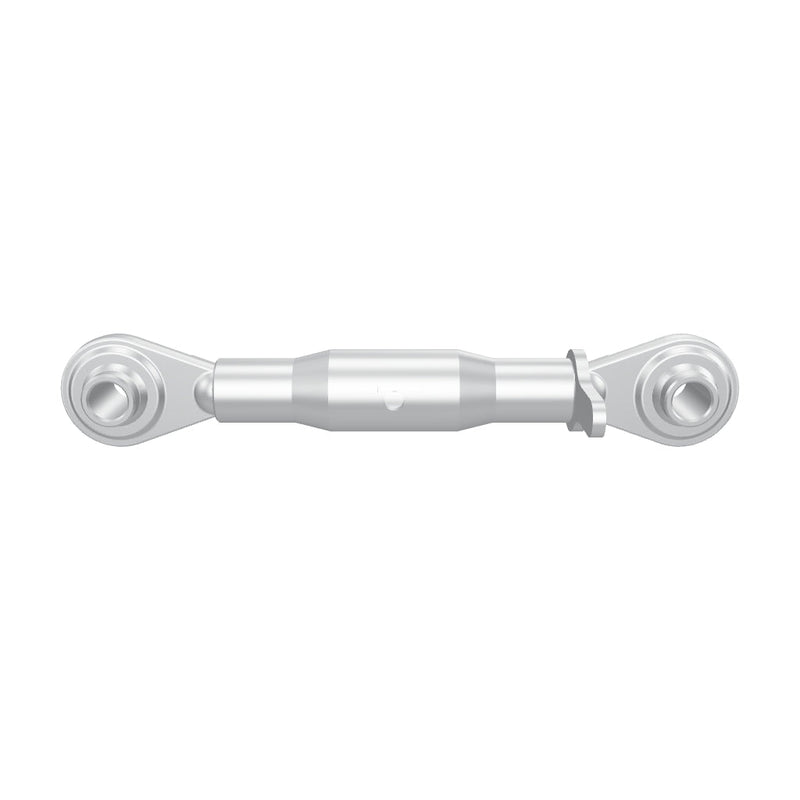

A load cell measures only as well as the force is introduced into it. Mounting accessories make sure the load arrives vertically and centred, and that side forces, tilting and thermal expansion stay out of the result: load buttons and self-centring rocker and plug-in feet, adjustable top plates, base plates and bases, axial spherical bearings, ball joints and rod ends, plus tension brackets, a turnbuckle with anchor plate, anti-rotation devices and mounting blocks.

Which part fits which cell is stated for each item – rated load, thread and material are given in the item name. Complete mounting kits for silos, tanks and vessels are listed under Weighing modules, the matching cells under Load cells & force transducers. If no standard version fits, contact us.
